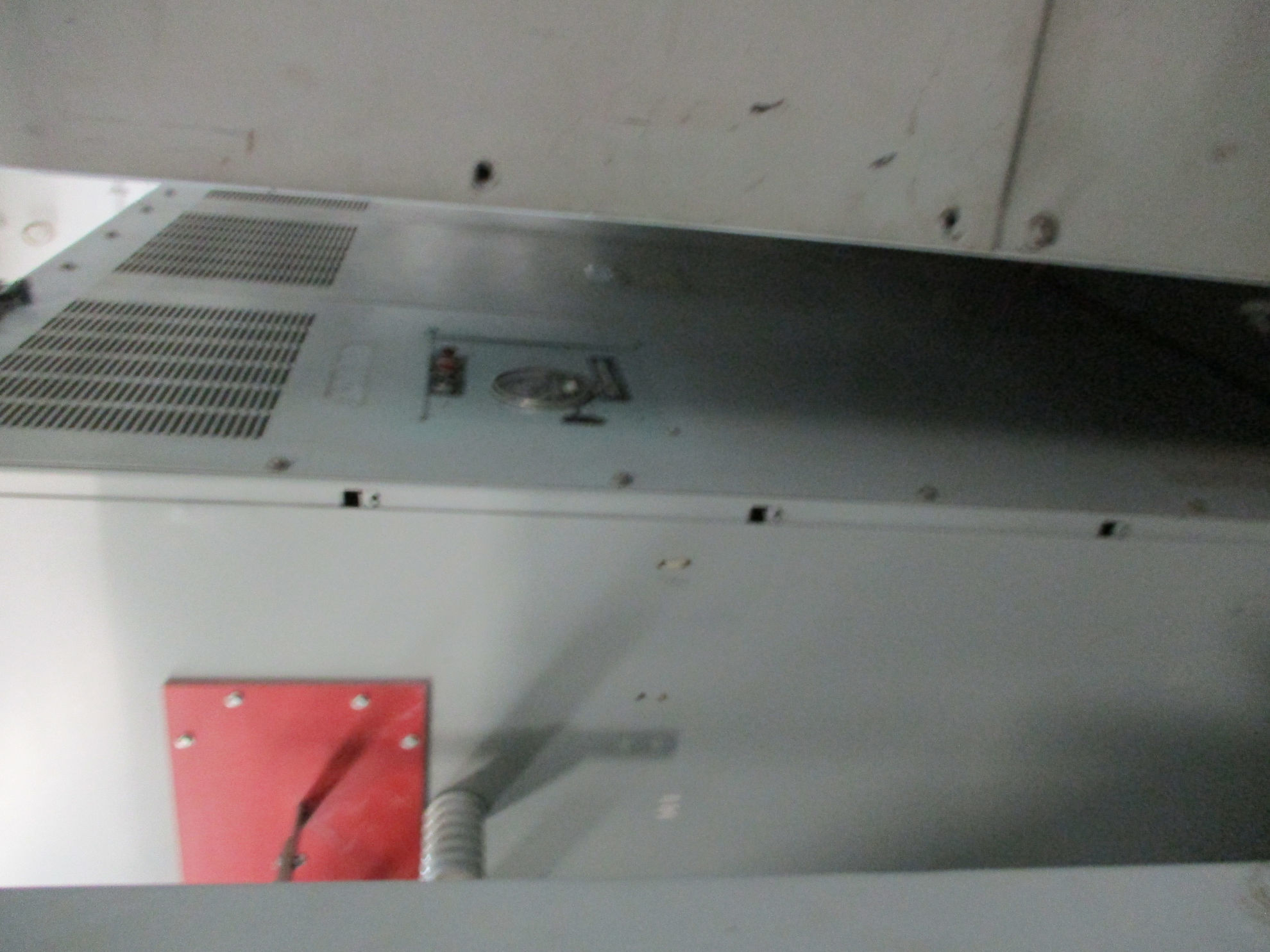

Sylvania 1000/1333 KVA 6900-480Y/277 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Sylvania Medium Voltage Dry Type Power Transformer: 1000/1333 KVA, high voltage: 6900 volt, low voltage: 480Y/277 volt, 3 phase, 60 Hz, NEMA 1 indoor. Reconditioned with 1 Year Warranty.

  • Cat # 33-1000-B002
  • S/N # 39227.5-1
  • Impedance: 6.40%
  • 80°C Temp Rise
  • Conductor: AL/AL
    • Taps:
      • 7245V
      • 7073V
      • 6900V
      • 6728V
      • 6555V
  • NEMA 1 Enclosure
  • 90"H x 102"W x 60"D
  • Weight: 7100 lbs
  • Reconditioned with 1 Year Warranty

LOC: EMSCO NORTH

Specs:

  • Manufacturer : Sylvania
  • KVA : 1000/1333
  • Phase : 3
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
  • Primary Voltage : 6900
  • Secondary Voltage : 480Y/277V
  • Material : Aluminum
Brand: Sylvania
SKU: MVDT300
$15,000.00
