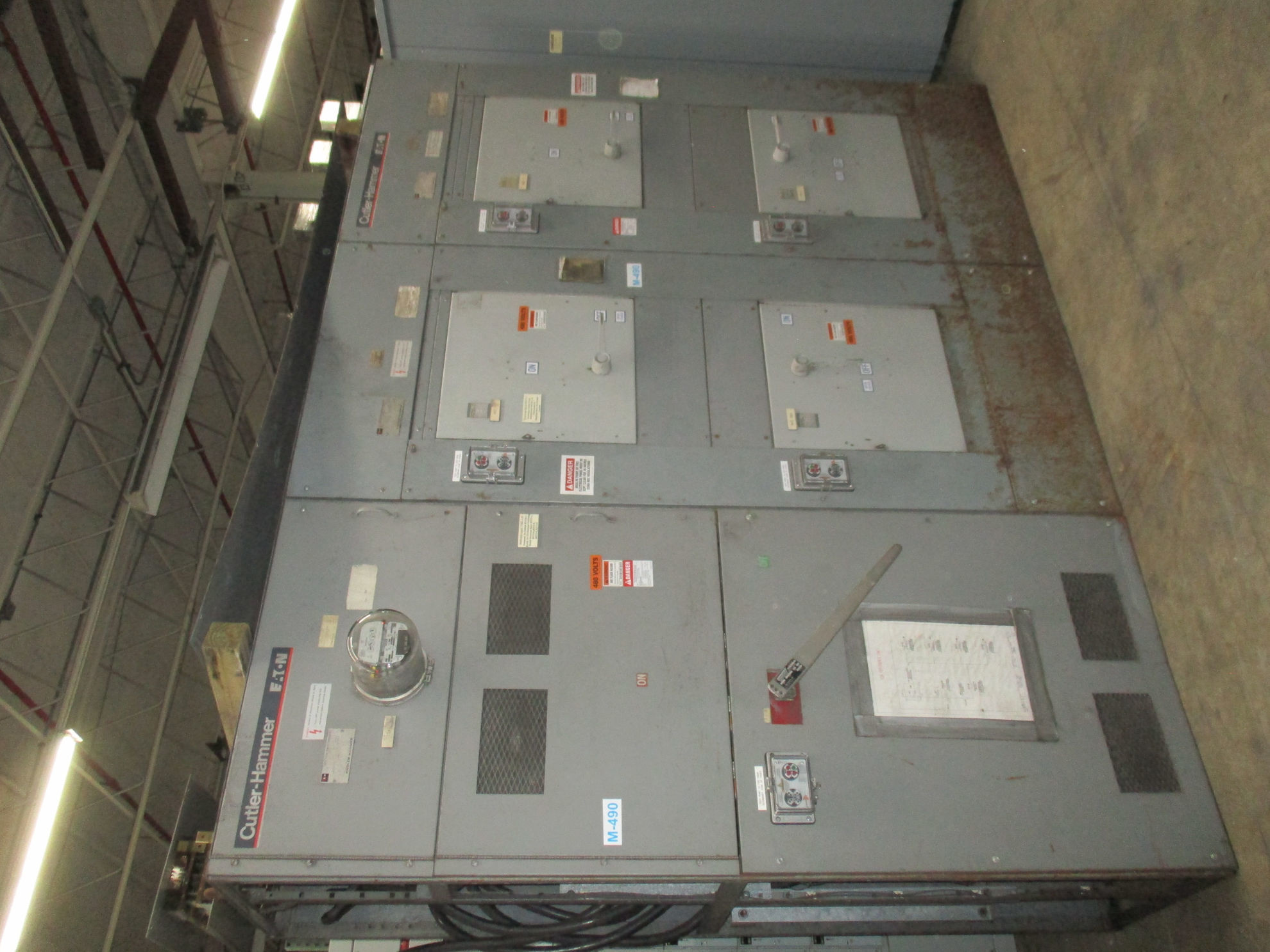

Cutler-Hammer Switchboard Fusible Main VL3611 2500A 480V AC NEMA 1 R&G

Product description:

Cutler-Hammer switchboard fusible main; boltswitch bolted pressure contact switch cat# VL3611, 2500 amp, 480 volt AC, NEMA 1 indoor with distribution sections. Reconditioned & guaranteed with a one year warranty.

Cutler-Hammer Fusible Main Section

• Type# FC325T
• Serial# 4PF2474005-A
• Three phase
• BoltSwitch Bolted Pressure Contact Switch
  • Cat# VL-3611
  • Serial# 74076
  • 2500 Amp
  • 480 Volt AC
  • Three pole
  • Three wire
• NEMA 1 Indoor Enclosure

(2) Cutler-Hammer Fusible Distribution Section

• (3) 800 Amp
  • 480 Volt AC
  • Three Poles
  • Type M50
• (1) 1200 Amp
  • 480 Volt AC
  • Three Poles
  • Type M50

Dimensions:

From Left to Right

• Main Section
  • 38" Width
  • 32" Depth
  • 90" Height

• Distribution Section 1
  • 38" Width
  • 32" Depth
  • 90" Height

• Distribution Section 2
  • 38" Width
  • 32" Depth
  • 90" Height

Reconditioned & guaranteed with a one year warranty

M-490       LOC: Pillar 138
