Cutler Hammer

EMSCO has a large inventory of ST and CST 100 amp busway. Whether you are replacing a single section or looking for a new run, we have you covered.

Cutler-Hammer Dry Type Transformer Manufactured by ABB 1000KVA/1180KVA/1573KVA AA/AA/FA HV: 13800 Volt 95kV BIL LV: 480Y/277 Volt 10kV BIL 3ph 60hz LV Amps: 1203A/1419A/1892A Imp: 6.13% 80°C/115°/115° Rise Copper (Cu) Wound SER# 24-36560-05 Taps: 14490V 39.8A (AA) 47.0A (AA) 62.7A (FA)14145V 40.8A (AA) 48.2A (AA) 64.2A (FA)13800V 41.8A (AA) 49.4A (AA) 65.8A (FA)13455V 42.9A (AA) 50.6A (AA) 67.5A (FA)13110V 44.0A (AA) 52.0A (AA) 69.3A (FA) NEMA 3R Enclosure 110"H x 108"W x 66"D Reconditioned with 1 Year Warranty

Dynapower Corporation Dry Type Transformer 1000/1333KVA AA/FA Primary Voltage: 13800 Volt 95kV BIL Secondary Voltage: 480Y/277 Volt 30kV BIL 3ph 60hz Imp: 5.570% 115° Rise Copper (Cu) Wound SER# 970100 Manufacture Date: Aug 97 Taps: 14490 14145 13800 13455 13110 NEMA 3R Enclosure 90"H x 90"W x 60"D Reconditioned with 1 Year Warranty

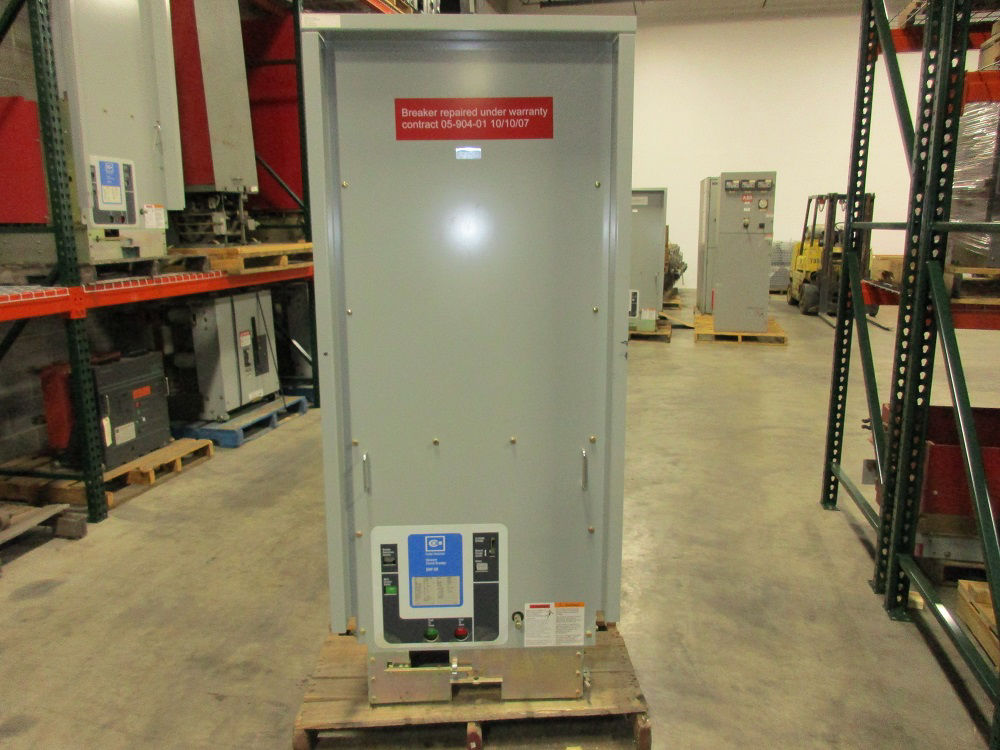

150 DHP-VR-1000 Cutler-Hammer Vacuum Breaker, 1200A, 15KV, EO/DO #22876 1200 Amps 15 KV Electrically Operated Draw Out 125 VDC Motor Volts Loc. AB10-X2

150 DHP-VR-1000 Cutler-Hammer Vacuum Breaker, 1200A, 15KV, EO/DO #22877 1200 Amps 15 KV Electrically Operated Draw Out 125 VDC Motor Volts Loc. AB10-Y2

150 DHP-VR-1000 Cutler-Hammer Vacuum Breaker, 1200A, 15KV, EO/DO #22880 1200 Amps 15 KV Electrically Operated Draw Out 125 VDC Motor Volts Loc. AB10-BB2

150 DHP-VR-1000 Cutler-Hammer Vacuum Breaker, 2000A, 15KV, EO/DO #22875 2000 Amps 15 KV Electrically Operated Draw Out 125 VDC Motor Volts Loc. AB10-W2

150 DHP-VR-1000 Cutler-Hammer Vacuum Breaker, 2000A, 15KV, EO/DO #22879 2000 Amps 15 KV Electrically Operated Draw Out 125 VDC Motor Volts Loc. AB10-AA2

Cutler Hammer Vacuum Circuit Breaker 150VCP-W500 1200Amp 15KV 60 Hz Rtd S-C Current 18 KA V Range Fac - K 1.30 Ind Intrpt Time 5 Cycles C&L Current 62 kA.PEAK Electrically Operated Motor Volts: 48 VDC Close Current: 15.5A Voltage Range: 38-56 VDC Trip-1 Current: 15.5A Voltage Range: 28-56 VDC Trip-2 Current: CAP TRIP Voltage Range: 240V AC Draw Out Used Electrically Okay EMSCO# AB-2014-20522 LOC: AB6-B4

Cutler-Hammer Dry Type Transformer Manufactured by ABB 2000KVA/2360KVA/3147KVA AA/AA/FA HV: 13800 Volt 95kV BIL LV: 480Y/277 Volt 10kV BIL 3ph 60hz LV Amps: 2406A/2839A/3785A Imp: 6.49% 80°C/115°/115° Rise Copper (Cu) Wound SER# 24-36560-01 Taps: 14490V 79.7A (AA) 94.0A (AA) 125.4A (FA) 14145V 81.6A (AA) 96.3A (AA) 128.4A (FA) 13800V 83.7A (AA) 98.7A (AA) 131.7A (FA) 13455V 85.8A (AA) 101.3A (AA) 135.0A (FA) 13110V 88.1A (AA) 103.9A (AA) 138.6A (FA) NEMA 3R Enclosure 110"H x 108"W x 66"D Reconditioned with 1 Year Warranty

Cutler-Hammer Dry Type Transformer 2000KVA (AA) / 2667KVA (FA) HV: 13800 LV: 480Y/277V 3ph 60hz LV Amps: 2406 (AA) / 3208 (FA) Imp: 7.95% 80°C Rise Al Wound SER# 24-35454L01 Taps: 14490V 79.7A (AA) 106.3A (FA) 14145V 81.6A (AA) 108.9A (FA) 13800V 83.7A (AA) 111.6A (FA) 13455V 85.8A (AA) 114.4A (FA) 13110V 88.1A (AA) 117.5A (FA) 12765V 90.5A (AA) 120.6A (FA) 12420V 93.0A (AA) 124.0A (FA) NEMA 1 Enclosure 110"H x 112"W x 65 1/2"D Reconditioned with 1 Year Warranty

Square D Company Power-Cast Dry Type Transformer 2000KVA AA/ 3000zKVA FFA HV: 13800 Volt Delta 95kV BIL LV: 480Y/277 Volt Wye 30kV BIL 3ph 60hz HV Amps: 125.5 LV Amps: 3608.5 Imp: 5.5% 80°C Rise Copper (Cu) Wound Mfg. Date 4/88 SER# S76092-A1 Taps: A to B 14490 14145 13800 13455 13110 B to C 13860 13530 13200 12870 12540 C to D 13094 12782 12470 12158 11846 NEMA 3R Enclosure 106"H x 108 1/2"W x 54"D ***(Side Connection Boxes add 8 1/2" for Each Side to Width)*** Reconditioned with 1 Year Warranty **CORE ONLY**

MGM 333KVA HV: 7200/12470Y Volt 60kV BIL LV: 120/240 Volt 10kV BIL 1ph 60hz 80°C Temp Rise Imp: 6.1% @ 100°C Aluminum Wound (Al) Wound Polarity - Subtractive Taps: 7560V 7380V 7200V 7020V 6840V NEMA 1 Enclosure 75.5"H x 48"W x 35"D #219 Ser# 88-2-30668-1 #220 Ser# 88-2-30668-2 #221 Ser# 88-2-30668-3 Reconditioned with 1 Year Warranty

MGM 500KVA HV: 7200/12470Y Volt 60kV BIL LV: 120/240 Volt 10kV BIL 1ph 60hz 80°C Temp Rise Imp: 6.1% @ 100°C Aluminum Wound (Al) Wound Polarity - Subtractive Taps: 7560V 7380V 7200V 7020V 6840V NEMA 1 Enclosure 76"H x 48"W x 35"D #222 Ser# 89-03-33285-1 #223 Ser# 89-03-33285-3 #224 Ser# 90-2-35292-3 Reconditioned with 1 Year Warranty

National Industri Dry Type Transformer 750/1000KVA AA/FA Primary Voltage: 13800 Volt 95kV BIL Secondary Voltage: 480 Volt 30kV BIL 3ph 60hz Imp: 5.82% @ 135°C 115° C Rise 165°C Ins Sys Aluminum (Al) Wound SER# 01296-1 Manufacture Date: 02/87 Taps: 14490 14145 13800 13455 13110 NEMA 3R Enclosure 89"H x 84"W x 54"D Reconditioned with 1 Year Warranty

Cutler-Hammer BAB1010 circuit breaker; 10 amp, 120/240 volt, single pole, used electrically OK.

Cutler-Hammer BAB1015 circuit breaker; 15 amp, 120/240 volt, single pole, used electrically OK.

Cutler-Hammer BAB1020 circuit breaker; 20 amp, 120/240 volt, single pole, used electrically OK.

Cutler-Hammer BAB1025 circuit breaker; 25 amp, 120/240 volt, single pole, used electrically OK.

Cutler-Hammer BAB1030 circuit breaker; 30 amp, 120/240 volt, single pole, used electrically OK.
