Cutler-Hammer Pow-R-Line Switchboard 1600 Amp480Y/277 Volt 3Ph 4W NEMA 1 R&G

Product description:

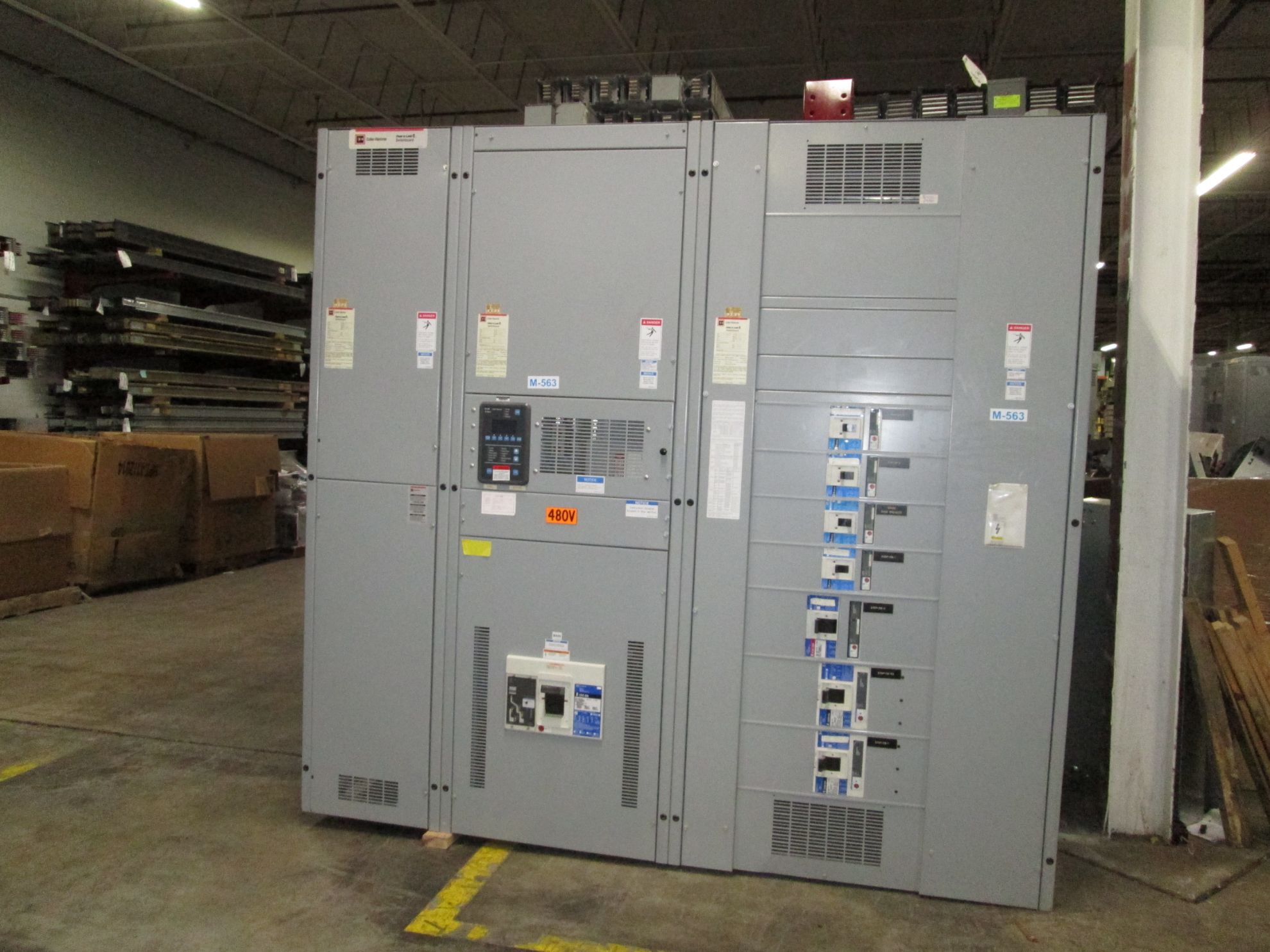

Cutler-Hammer Pow-R-Line Switchboard; 1600 amp main breaker, 480Y/277 volt AC, 3 phase, 4 wire, ground fault indicator, NEMA 1indoor rated. Reconditioned & Guaranteed with a one-year warranty.

3 Sections: From Left to Right

Empty Panel

Main Breaker Panel

  • RD 65K Main Breaker
    • 1600 Amp
    • 600 Volt AC
    • Style #1495D80G81
    • Digitrip RMS 310 Trip Unit
      • 1600 Amp
      • Cat# RES1600LSIG
      • LSIG Functions
      • Ground Fault
      • Digitrip RMS 310 Rating Plug
        • Cat# 16RES16T
        • 2500 Amps
      • IQ Analyzer

Distrubution Panel

  • (3) 400 Amp
    • Cat# CHKD3400F
    • 250 Amp Trip Unit
      • Cat# KES3250LS
    • 250 Amp Rating Plug
      • Cat# A2KES250T1
  • (1) 400 Amp
    • Cat# CHKD3400F
    • 400 Amp Trip Unit
      • Cat# KES3400LS
    • 400 Amp Rating Plug
      • Cat# A4KES400T1
  • (1) 600 Amp
    • Cat# CHLD3600F
    • 600 Amp Trip Unit
      • Cat# LES3600LS
    • 600 Amp Rating Plug
      • Cat# A6LES600T1
  • (2) 1200 Amp
    • Cat # CHND312T33W
    • 1200 Rating Plug
      • Cat# A12NES1200T1

Dimensions:

Empty Panel

  • 20" Width
  • 48" Depth
  • 90" Height

Main Panel

  • 30" Width
  • 48" Depth
  • 90" Height

Distribution Panel

  • 45" Width
  • 48" Depth
  • 90" Height



M563        LOC: Pillar 151

Specs:

  • Manufacturer : Cutler-Hammer
  • Main Type : Circuit Breaker
  • Style : Breaker
  • Amperage : 1600
  • Voltage : 480Y/277
  • Phase : 3
  • Wire : 4
  • Ground Fault : Yes
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
SKU: M563
