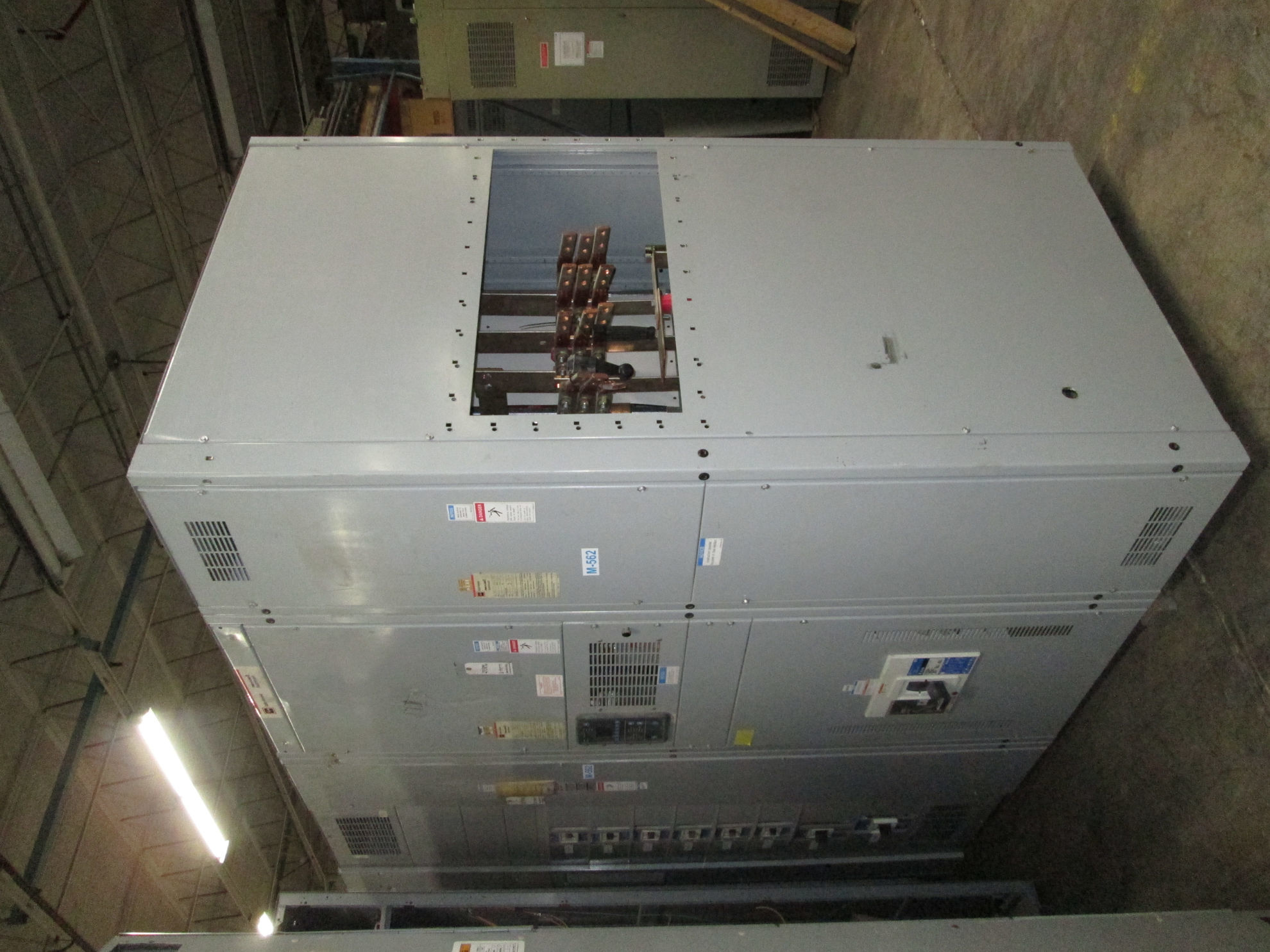

Cutler-Hammer Pow-R-Line Switchboard 1600 Amp 480Y/277 Volt 3Ph 4W NEMA 1 R&G

Product description:

Cutler-Hammer Pow-R-Line Switchboard; 1600 amp main breaker, 480Y/277 volt AC, 3 phase, 4 wire, ground fault indicator, NEMA 1 indoor rated. Reconditioned & Guaranteed with a one-year warranty.

3 Sections: From Right to Left

Empty Panel

Main Breaker Panel

• RD 65K Main Breaker
  • Cat# CRD316T36W
  • 1600 Amp
  • 600 Volt AC
  • Style #1495D80G81
  • Digitrip RMS 310 Trip Unit
    • 1600 Amp
    • Cat# RES1600LSIG
    • LSIG functions
    • Ground Fault
    • Digitrip RMS 310 Rating Plug
      • Cat# 16RES16T
      • 2500 Amps
    • IQ Analyzer

Distribution Panel

• (1) 400 Amp
  • Cat# CHKD3400F
  • 125 Amp Trip Unit
    • Cat# KES3125LS
  • 125 Amp Rating Plug
    • Cat# A1KES125T1
• (4) 400 Amp
  • Cat# CHKD3400F
  • 250 Amp Trip Unit
    • Cat# KES3250LS
  • 250 Amp Rating Plug
    • Cat# A2KES250T1
• (1) 400 Amp
  • Cat# CHKD3400F
  • 400 Amp Trip Unit
    • Cat# KES3400LS
  • 400 Amp Rating Plug
    • Cat# A4KES400T1
• (1) 600 Amp
  • Cat# CHLD3600F
  • 600 Amp Trip Unit
    • Cat# LES3600LS
  • 600 Amp Rating Plug
    • Cat# A6LES600T1
• (1) 1200 Amp
  • Cat# CHND312T33W
  • 1200 Rating Plug
    • Cat# A12NES1200T1

Dimensions:

Empty Panel

• 20" Width
• 48" Depth
• 90" Height

Main Panel

• 30" Width
• 48" Depth
• 90" Height

Distribution Panel

• 45" Width
• 48" Depth
• 90" Height
