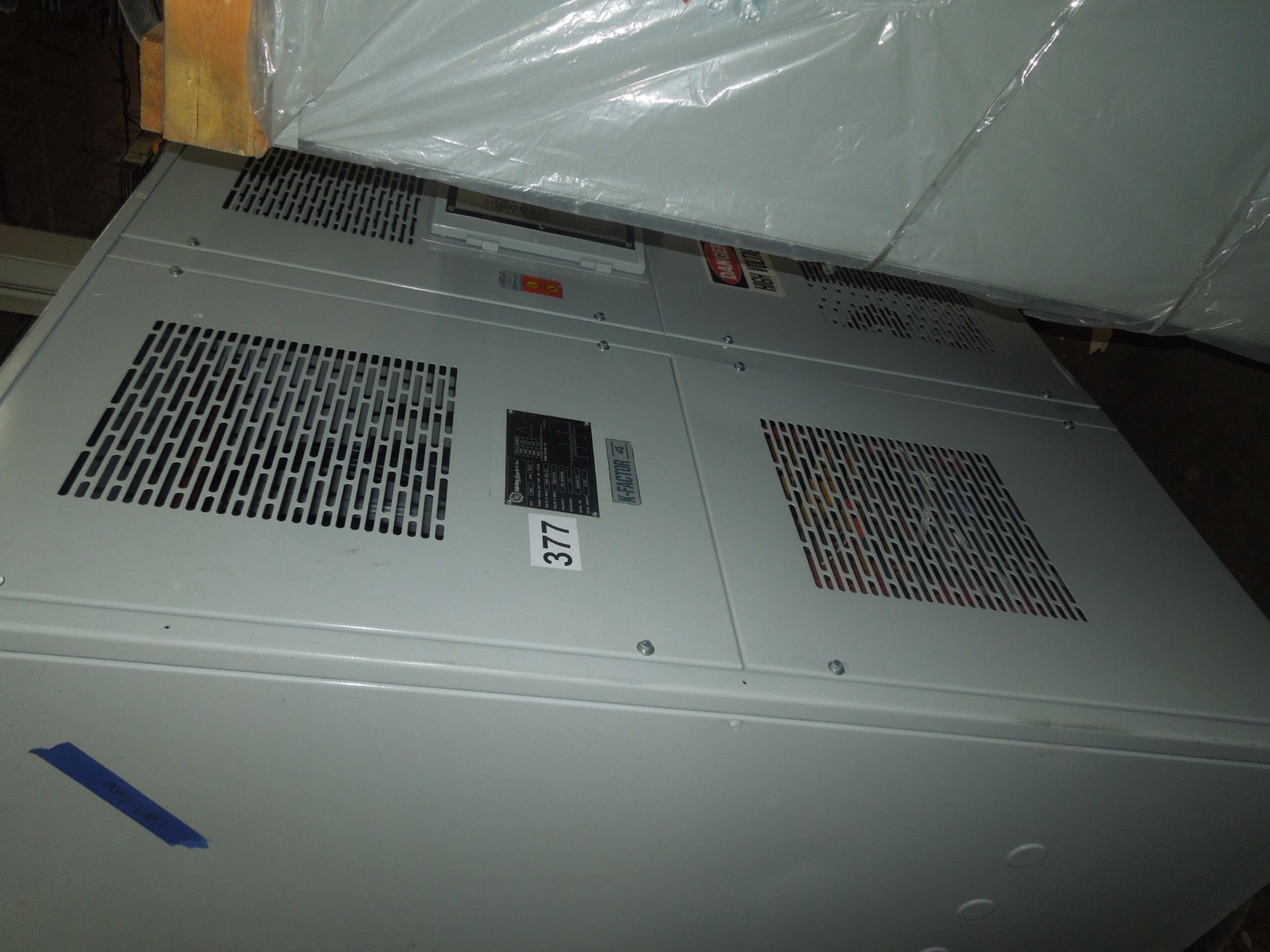

T&R Electric Supply Co. Medium Voltage Dry Type Transformer | 500 KVA 4160Y-208Y/120 Volt | 3 Phase NEMA 1 R&G

Product description:

T&R Electric Supply Co. Medium Voltage Dry Type Transformer: Serial # 240802-22, 500 KVA, primary voltage: 4160Y volt, secondary voltage: 208Y/120 volt, 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• Impedance: 7.1%
• 80°C Temp Rise
• Conductor: AL/AL
  • Taps:
    • 4368V
    • 4264V
    • 4160V
    • 4056V
    • 3952V
• NEMA 1 Enclosure
• 64" Width x 48" Depth x 80" Height
• Weight: 3757 lbs

MVDT # 377                               LOC: SW Corner
