Square D QED Power Style Switchboard RK1600 | 1600 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 1600 amp main breaker- cat # RKF36160CU64BE1SAYP, 480Y/277 volt, 3 phase, 4 wire, ground fault, ERMS, NEMA 1 indoor. With (1) section of I-line breaker distribution panel. Reconditioned & guaranteed with a one-year warranty.

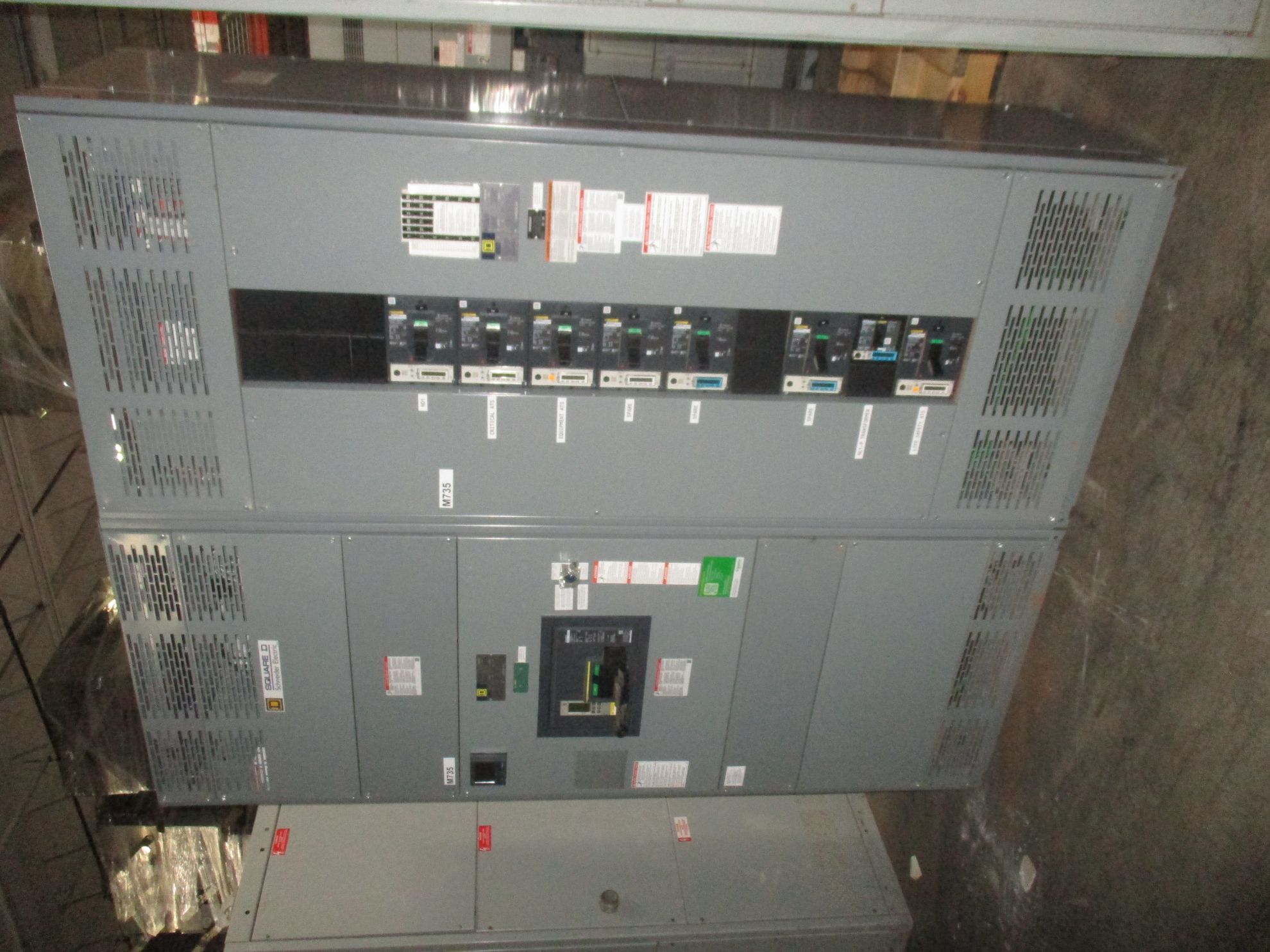

2 Sections: From Left to Right

Main Breaker Panel

• PowerLogic Meter
• ERMS Switch
• 1600 Amp PowerPact Main Breaker
  • RK 1600
  • Cat # RKF36160CU64BE1SAYP
  • Micrologic 6.0 P Trip Unit
    • LSIG functions
    • Ground Fault
    • ERMS

I-Line Distribution Panel

• (7) 400 Amp PowerPact Breakers
  • LJ 400
  • Cat # LJA36400CU54XENYH2
• (1) 60 Amp PowerPact Breaker
  • HJ060
  • Cat # HJA36060U44XENYH2

Dimensions:

• Main Panel
  • 36" Width
  • 24" Depth
  • 92" Height

• I-Line Dist Panel
  • 36" Width
  • 24" Depth
  • 92" Height

M-735                 LOC: Across from SPR-E5
