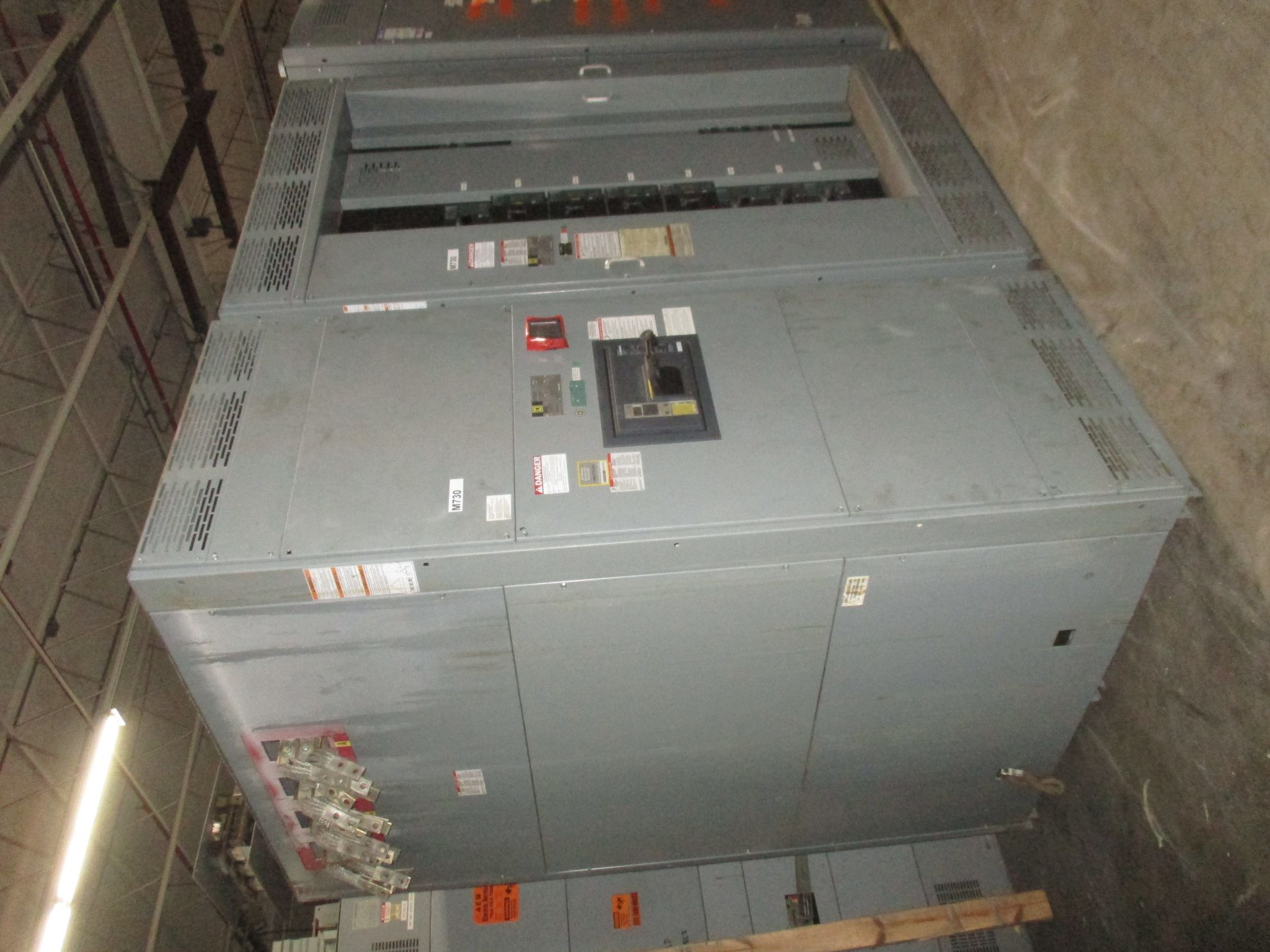

Square D QED Power Style Switchboard RG2000 | 2000 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 2000 amp main breaker- cat # RGF36200CU44A, 480 volt AC, 3 phase, 4 wire, ground fault, NEMA 1 indoor rated. With (1) section of I-Line distribution breakers panel. Reconditioned & guaranteed with a one-year warranty.

2 Sections: From Left to Right

Main Breaker Panel

• Power Logic PM800
• 2000 Amp PowerPact Main Breaker
  • RG 2000
  • Cat # RGF36200CU44A
  • Micrologic 6.0 A Trip Unit
    • LSIG functions
    • Ground Fault

I-Line Distribution Panel

• (4) 600 Amp
  • Cat # LC36600
• (2) 400 Amp
  • Cat # LH36400
• (1) 400 Amp
  • Cat # LH36400
• (1) 400 Amp
  • Cat # LH26400AC
• (1) 200 Amp
  • Cat # JGA36200
• (2) 100 Amp
  • Cat # HGA36100
• (1) 40 Amp
  • Cat # HGA36040

Dimensions:

• Main Panel
  • 36" Width
  • 60" Depth
  • 90" Height

• Distribution I-Line Panel
  • 54" Width
  • 60" Depth
  • 90" Height

M-730                           LOC: Across from 3R wall by P138
