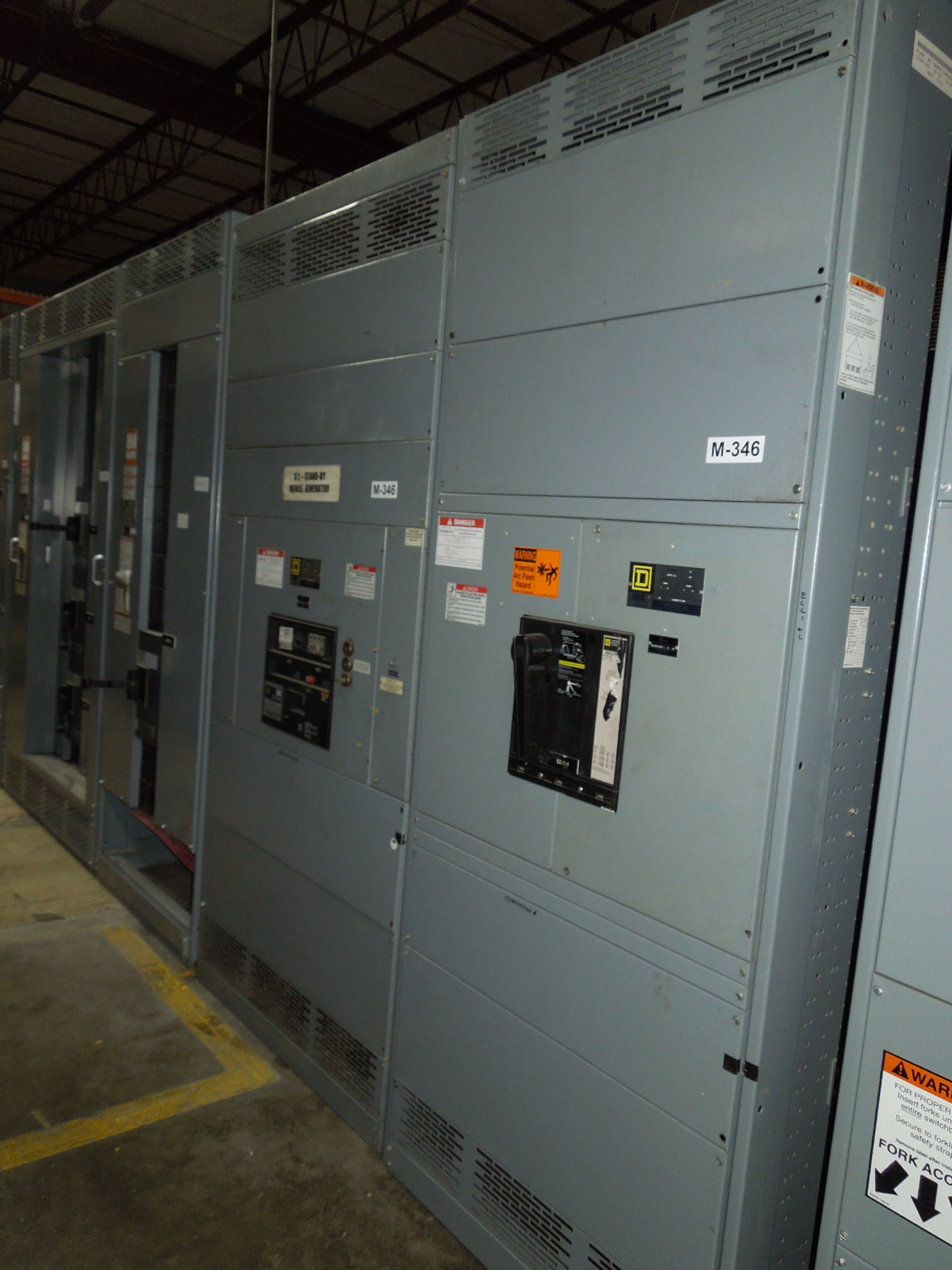

Square D QED Power Style Switchboard 2000 Amp 480Y/277V 3Ph 4W R&G

Product description:

Square D QED Power Style Switchboard; 2000 amp frame main cat# PHF2036 with rating plug cat #ARP100, 480Y/277 volt, three phase, four wire, rated at 1400 amp, distribution section, LSIG functions. Reconditioned & guaranteed with a one year warranty.

2 Sections: From Left to Right:

• Main Breaker
• Distribuiton Breaker

Main Breaker

• 2000 Amp Sensor
• Rating plug cat# ARP100
• LSIG functions
• Micrologic Full-Function Series B
• Ground Fault
• 600 VAC
• 3 Pole

Distribution Section

• Cat# PHF2036
• 1400 Amp Rated
• 480Y/277 Volt
• 3 Phase
• 4 Wire

Dimensions:

Main

• 42"W
• 49"D
• 90"H

Distribution

• 36"W
• 49"D
• 90"H

(M-346  Loc: Pillar 107/117)
