Square D QED Power Style Switchboard BPO3620E | 2000 Amp Fusible Main | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 2000 amp fusible main switch- cat # BPO3620E, 480Y/277 volt, 3 phase, 4 wire, ground fault, NEMA 1 indoor rated. With Pull Panel & (1) I-line breaker distribution panel. Reconditioned & guaranteed with a one-year warranty.

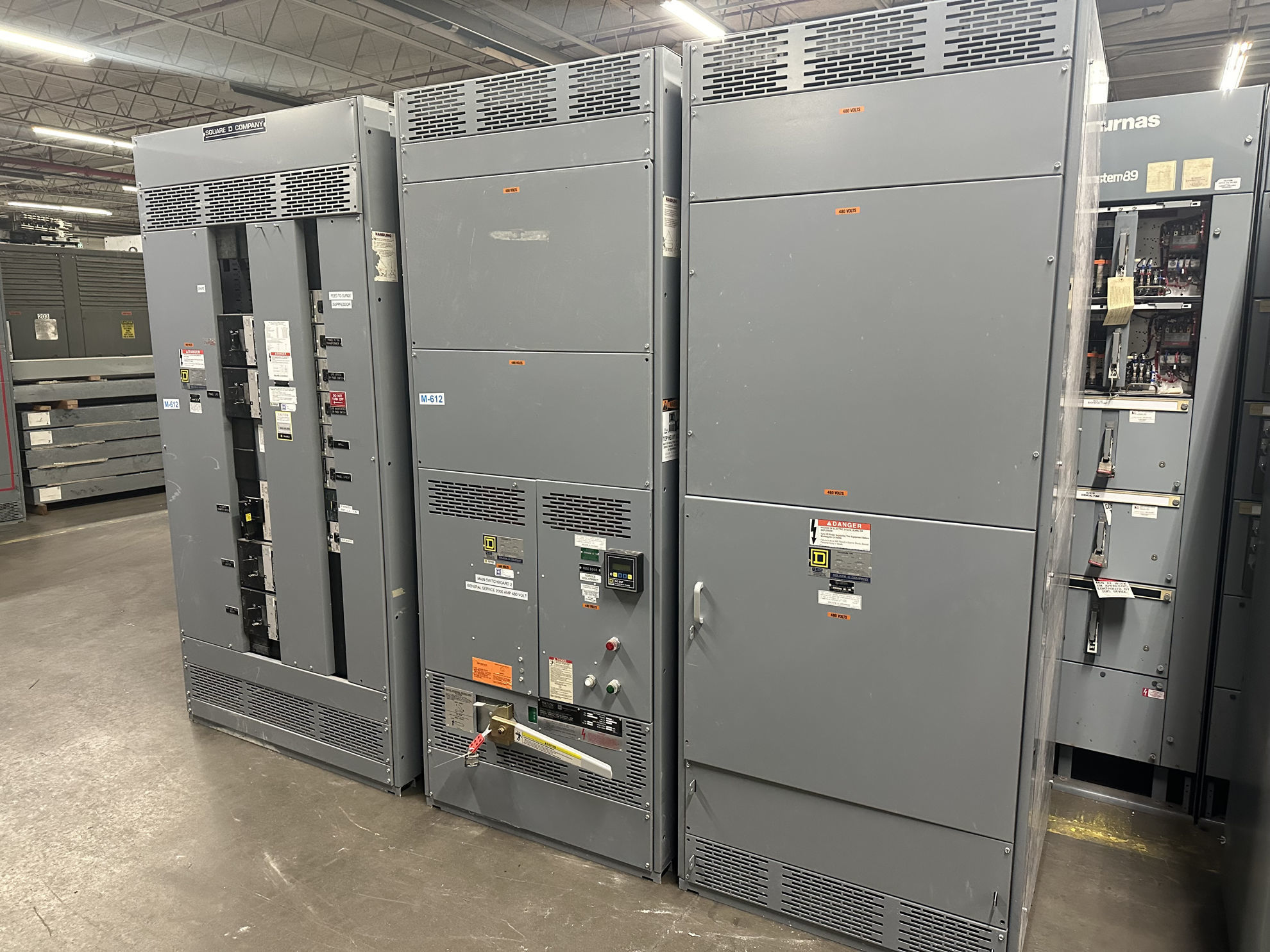

3 Sections: From Right to Left

Pull Section

Fusible Main Panel

• 2000 Amp
• 480 Volt
• MFG # BPO3620E
• Switch Solenoid Rating

  • 120 Volts
  • 12 Fuse Size
  • Inrush current- 46 amps
  • sealed current- 22 amps
• 60 Hz
• 3 Phase
• 4 Wire
• Ground Fault Display

I-Line Breaker Distribution Panel

• (1) 800 Amp
  • MH36800
• (1) 400 Amp
  • LC36400
• (3) 350 Amp
  • LC36350
• (2) 225 Amp
  • KC34225
• (4) 200 Amp
  • KC34200
• (1) 100 Amp
  • FC34100
• (1) 25 Amp
  • FA36025

Dimensions:

• Pull Panel
  • 36" Width
  • 36" Depth
  • 91" Height

• Main Fusible Panel
  • 36" Width
  • 36" Depth
  • 91" Height

• I-Line Breaker Dist Panel

  • 48" Width
  • 36" Depth
  • 91" Height

M-612          LOC: Pillar 152
