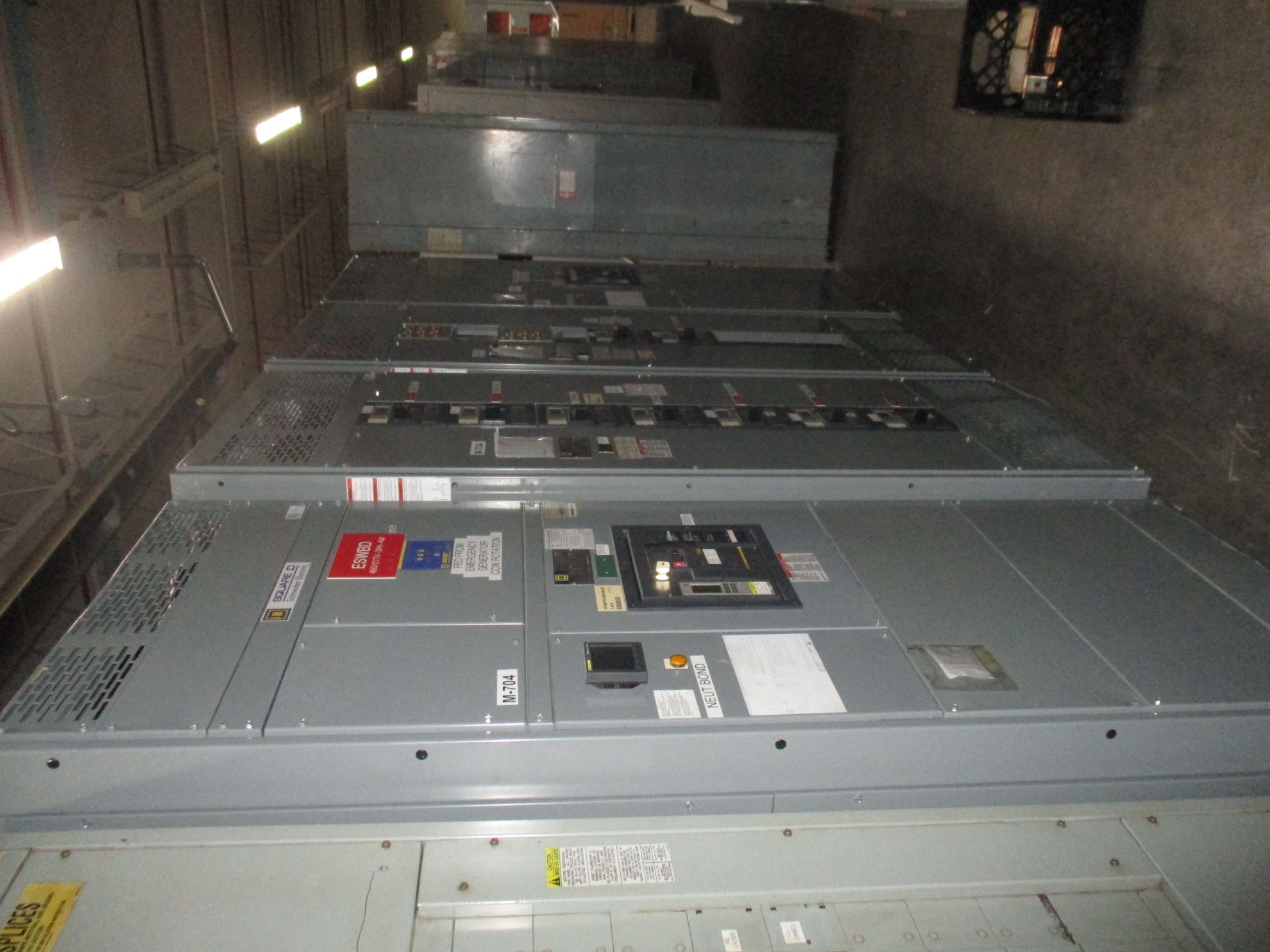

Square D QED Power Style Switchboard NW20H | 2000 Amp Dual Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 2000 amp dual main breaker- cat # WL1FFV63A3FXXXXXXA, 480Y/277 volt, 3 phase, 4 wire, LSI functions, NEMA 1 indoor rated. With (2) sections of I-line distribution panels. Reconditioned & guaranteed with a one-year warranty.

4 Sections: From Left to Right

Main Breaker 1 Panel

• PowerLogic PM800
• 2000 Amp MasterPact Breaker
  • NW 20 H
  • Cat # WL1FFV63A3FXXXXXXA
  • Micrologic 5.0 A
    • LSI functions
    • No Ground Fault

I-Line Distribution 1 Panel

• (3) 800 Amp PowerPact Breaker
  • Cat # PGA36080CU63AE1W
  • Micrologic 5.0 P
    • LSI Functions
• (1) 600 Amp PowerPact Breaker
  • Cat # PGA36060CU63AE1W
• (3) 400 Amp PowerPact Breaker
  • Cat # PGA36040CU63AE1W

I-Line Distribution 2 Panel

• (2) 800 Amp PowerPact Breaker
  • Cat # PGA36080CU63AE1W
  • Micrologic 5.0 P
    • LSI Functions

Main Breaker 2 Panel

• 2000 Amp MasterPact Breaker
  • NW 20 H
  • Cat # WL1FFV63A3FXXXXXXA
  • Micrologic 5.0 A
    • LSI functions
    • No Ground Fault

Dimensions:

• Main Panel 1
  • 36" Width
  • 36" Depth
  • 90" Height
• Distribution Panel 1
  • 36" Width
  • 36" Depth
  • 90" Height
• Distribution Panel 2
  • 36" Width
  • 36" Depth
  • 90" Height
• Main Panel 2

  • 36" Width
  • 36" Depth
  • 90" Height

M-704                      LOC: SPR F-10
