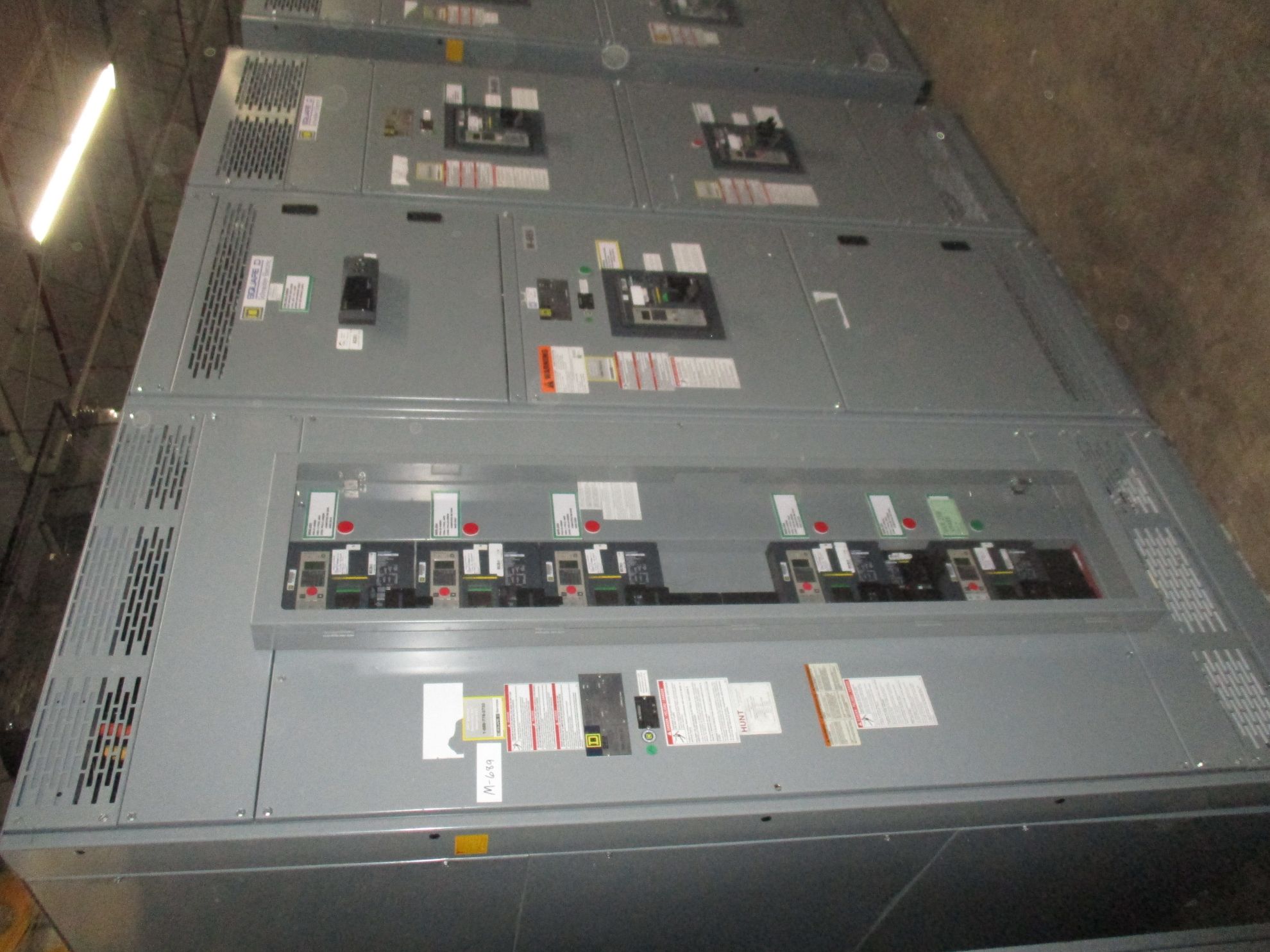

Square D QED Power Style Switchboard 1200 Amp Main Breaker 480 Volt 3 Ph 3 W NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 1200 amp main breaker, 480 volt, 3 phase, 3 wire, NEMA 1 indoor rated. With I-line distribution, 1200 amp maintenance bypass breaker & 1200 amp maintenance isolation breaker. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Right to Left

Main & Isolation Breaker Panel

• 1200 Amp PowerPact Main Breaker
  • PJ 1200
  • Cat # PJF36120CU41AE1ACBD
  • 480 Volt
  • Micrologic 3.0 A
    • LI Functions
• 1200 Amp PowerPact Isolation Breaker
  • PJ 1200
  • Cat # PJF36120CU41AE1ACBD
  • 480 Volt
  • Micrologic 3.0 A
    • LI Functions

Bypass Breaker Panel

• PowerLogic Circuit Monitor
• 1200 Amp PowerPact Bypass Breaker
  • PJ 1200
  • Cat # PJF36120CU41AE1ACBD
  • 480 Volt
  • Micrologic 3.0 A
    • LI Functions

Distribution PowerPact Breaker Panel

• (4) 400 Amp
  • PJ 400
  • Cat # PJA36040CU43BE1ACBDSA
  • Micrologic 5.0 A
    • LSI functions
• (1) 250 Amp
  • PJ 250
  • Cat # PJA36025CU43AE1ACBDSA
  • Micrologic 5.0 A
    • LSI Functions

Dimensions:

• Main & Isolation Panel
  • 30" Width
  • 48" Depth
  • 91" Height

• Bypass Panel
  • 30" Width
  • 48" Depth
  • 91" Height

• Distribution Panel
  • 36" Width
  • 48" Depth
  • 91" Height

M-689                  LOC: Pillar 115 (SPR-D11)
