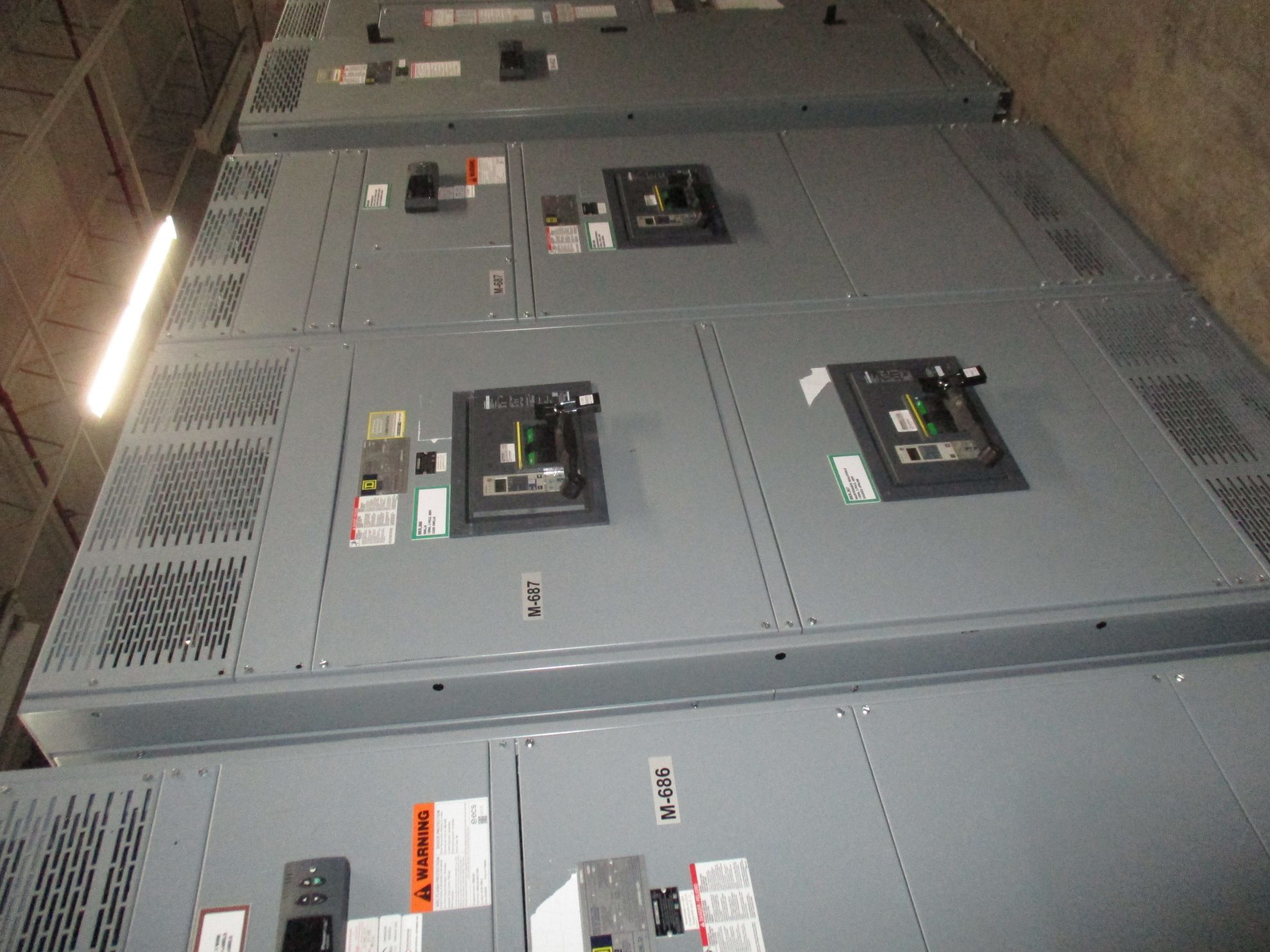

Square D QED Power Style Switchboard 1200 Amp Main Breaker 480 Volt 3 Ph 3 W NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 1200 amp main breaker, 480 volt, 3 phase, 3 wire, NEMA 1 indoor rated. With 1200 amp maintenance bypass breaker & 1200 amp maintenance isolation breaker. Reconditioned & guaranteed with a one-year warranty.

2 Sections: From Right to Left

Bypass Breaker Panel

• PowerLogic Circuit Monitor
• 1200 Amp PowerPact Bypass Breaker
  • RL 1200
  • Cat # RLF36120CU44A
  • Micrologic 6.0 A
    • LSIG Functions

Main Breaker & Isolation Panel

• 1200 Amp PowerPact Main Breaker
  • RL 1200
  • Cat # RLF36120CU44A
  • Micrologic 6.0 A
    • LSIG Functions
• 1200 Amp PowerPact Isolation Breaker
  • RL 1200
  • Cat # RLF36120CU44AE1
  • Micrologic 6.0 A
    • LSIG Functions

Dimensions:

• Bypass Panel
  • 36" Width
  • 36" Depth
  • 91" Height

• Main & Isolation Panel
  • 36" Width
  • 36" Depth
  • 91" Height

M-687                 LOC: Pillar 115 (SPR-D9)
