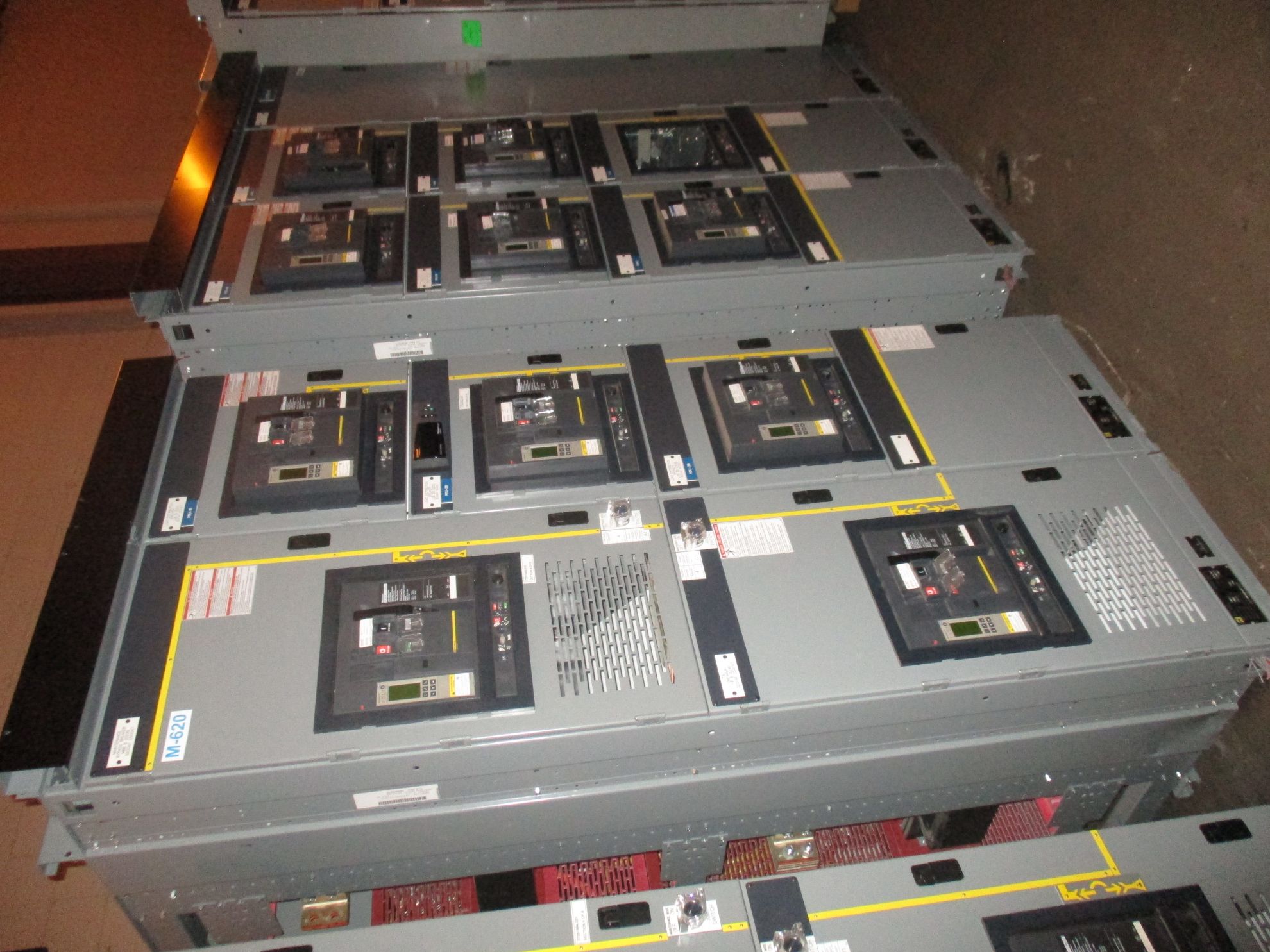

Square D Power-Zone Switchboard 3200 Amp 480 Volt 3Ph 3W NEMA 1 R&G

Product description:

Square D Power-Zone Switchboard; 3200 amp, 480 volt AC, 3 phase, 3 wire, arc flash reduction, LSIG functions, ground fault, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Breaker (1) Panel

  • Surgelogic Surge Protective Device
  • (1) 3200 Amp MasterPact Breaker
    • NW32H3
    • 480 Volt AC
    • Cat# WA6JJR64A3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 3200 Amp
  • (1) 3200 Amp MasterPact Breaker
    • NW32H3
    • 480 Volt AC
    • Cat# WA6JGR64A3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 2500 Amp
  • (3) 1600 Amp MasterPact Breaker
    • NW16H3
    • 480 Volt AC
    • Cat# WA6EBR64A3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 1000 Amp

Breaker (2) Panel

  • (2) 3200 Amp MasterPact Breaker
    • NW32H3
    • 480 Volt AC
    • Cat# WA6JGR64A3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 2500 Amp
  • (3) 800 Amp MasterPact Breaker
    • NW08H3
    • 480 Volt AC
    • Cat# WA6ATR64F3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 600 Amp

Breaker (3) Panel

  • (5) 800 Amp MasterPact Breaker
    • NW08H3
    • 480 Volt AC
    • Cat# WA6ATR64F3DFFFXXCAT
    • Micrologic 6.0P Trip Unit
      • 600 Amp
  • (1) 800 Amp MasterPact Breaker
    • NW08H3
    • 480 Volt AC
    • Cat# WA6PPR64A3DFFFXXCAT
    • Micrologic 6.0P
      • 250 Amp

Dimensions:

Breaker (1) Panel

  • 66" Width
  • 73" Depth
  • 93" Height

Breaker (2) Panel

  • 44" Width
  • 73" Depth
  • 93" Height

Breaker (3) Panel

  • 66" Width
  • 73" Depth
  • 93" Height

M-620          LOC: Cold Storage

Specs:

  • Manufacturer: Square D
  • Style: Breaker
  • Main Type: Circuit Breaker
  • Amperage: 3200
  • Voltage: 480
  • Phase: 3
  • Wire: 3-Wire
  • Ground Fault: Yes
  • Indoor/Outdoor: Indoor
  • Condition: Refurbished
Brand: Square D
SKU: M620
