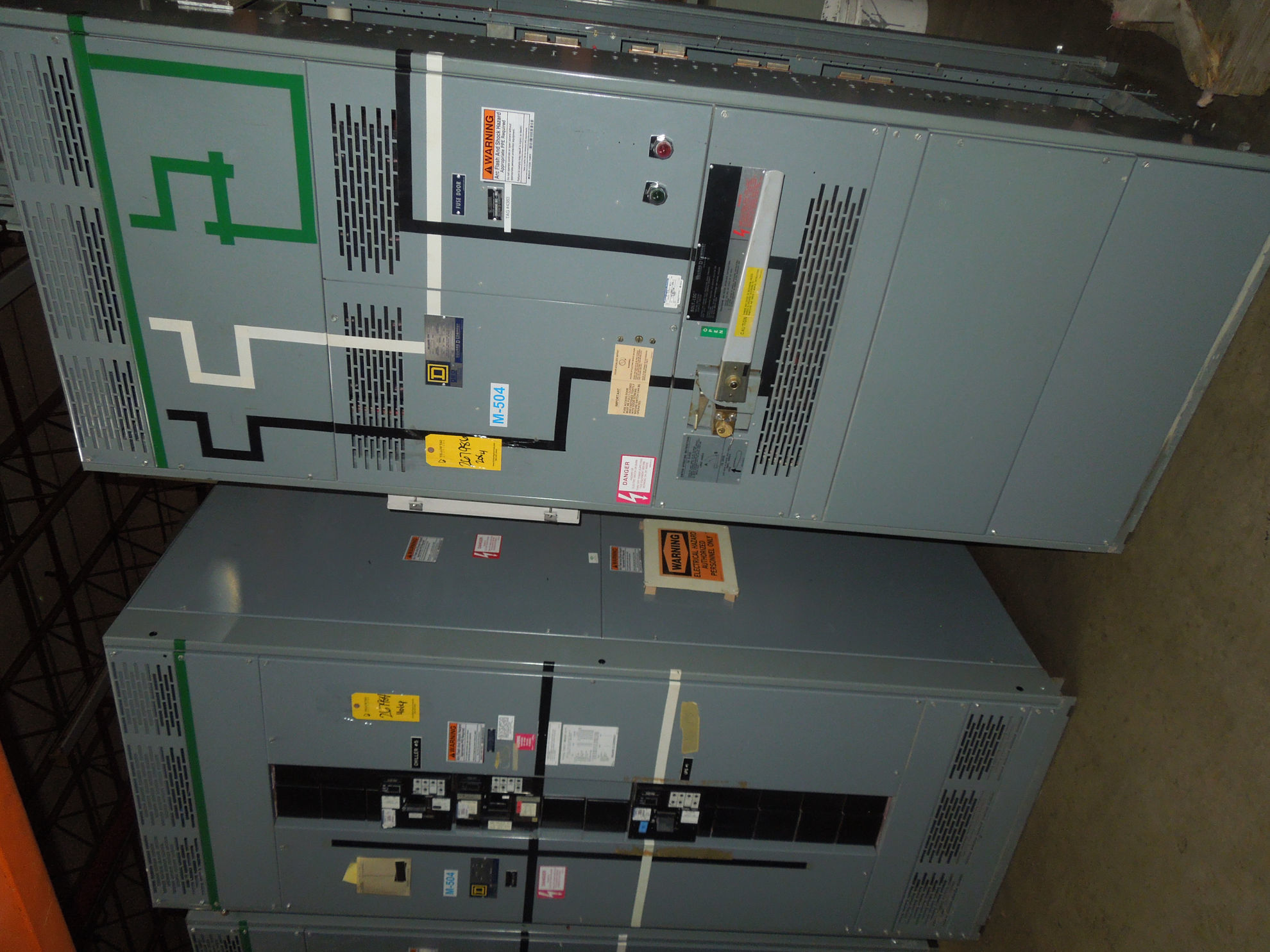

Square D Power Style Switchboard Bolt-Loc Fusible Main 1600 Amp 480/277 Volt NEMA 1 R&G

Product description:

Square D Power Style Switchboard; bolt-loc fusible main, 1600 Amp, 480/277 volt, I-line breaker distribution, Nema 1 indoor Reconditioned & guaranteed with a one year warranty.

Main Fusible Section

  • Bolt-Loc bolted pressure contact switch
  • 1600 Amp
  • 480/277 Volt
  • 3 Phase
  • 4 Wire
  • NEMA 1 indoor rated

I-line Breaker Distribution Section

  • (1) 250 Amp Electronic Trip Circuit Breaker
  • LE36100LSG
  • 480 Volt
  • Ground Fault
  • Micrologic full-function Series B
    • Rating Plug
    • Cat# ARP050
  • (1) 800 Amp Sensor (Frame) Solid State Trip Circuit Breaker
  • Cat# ME36800LSG
  • 480 Volt
  • Series 5
  • Ground Fault
  • Micrologic trip unit
    • Rating Plug
    • Cat# RP100
  • (1) 250 Amp Electronic Trip Circuit Breaker
  • Cat# LE36150LSG
  • 480 Volt
  • Ground Fault
  • Micrologic Full- Function Series B
    • Rating Plug
    • Cat# ARP060

Dimensions: 2 Sections (from right to left)

  • Fusible Main
    • 36" Width
    • 37" Depth
    • 90" Height
  • I-Line Distribution
    • 36" Width
    • 37' Depth
    • 90" Height

(M-504         LOC: Transformer Rows 14 & 15)

Specs:

  • Manufacturer : Square D
  • Main Type : Fusible
  • Amperage : 1600
  • Voltage : 480Y/277
  • Ground Fault : No
  • Indoor/Outdoor : Indoor
  • Style : Breaker
  • Phase : 3
  • Wire : 4
  • Condition : Refurbished
Brand: Square D
SKU: M504
Contact us for pricing:
1-800-328-1842
