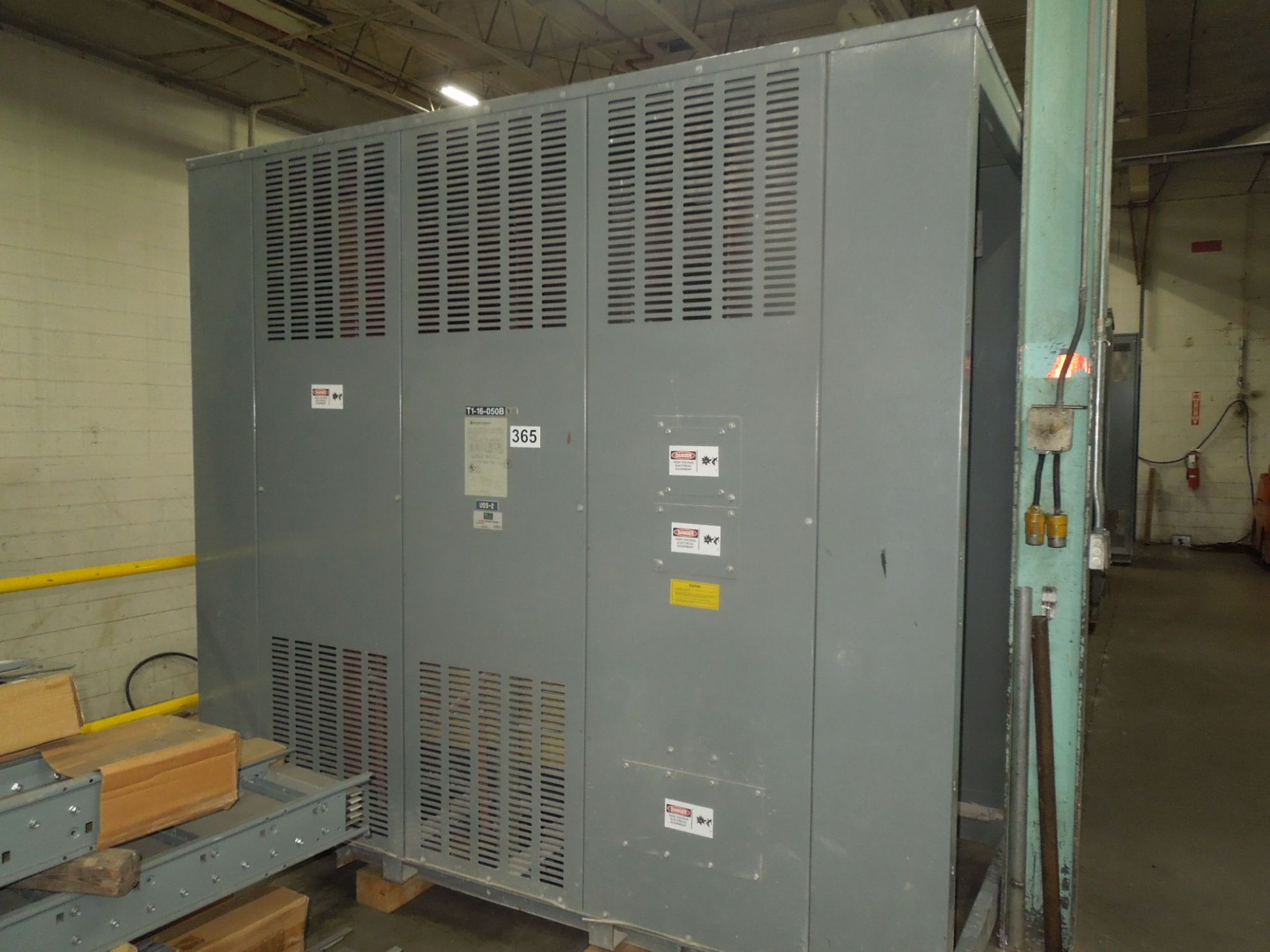

Square D 1500 KVA 12470-480Y/277 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Square D Medium Voltage Dry Type Transformer: Serial # 984057-VB, 1500 KVA, primary voltage: 12470 volt, secondary voltage: 480Y/277 volt, 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• Impedance: 6.13%
• 150°C Temp Rise
• Conductor: AL/AL
  • Taps:
    • 2520V
    • 2460V
    • 2400V
    • 2340V
    • 2280V
• NEMA 1 Enclosure
• 104" Width x 54" Depth x 94" Height
• Weight: 5950 lbs

MVDT# 365                               LOC: Loading Docks
