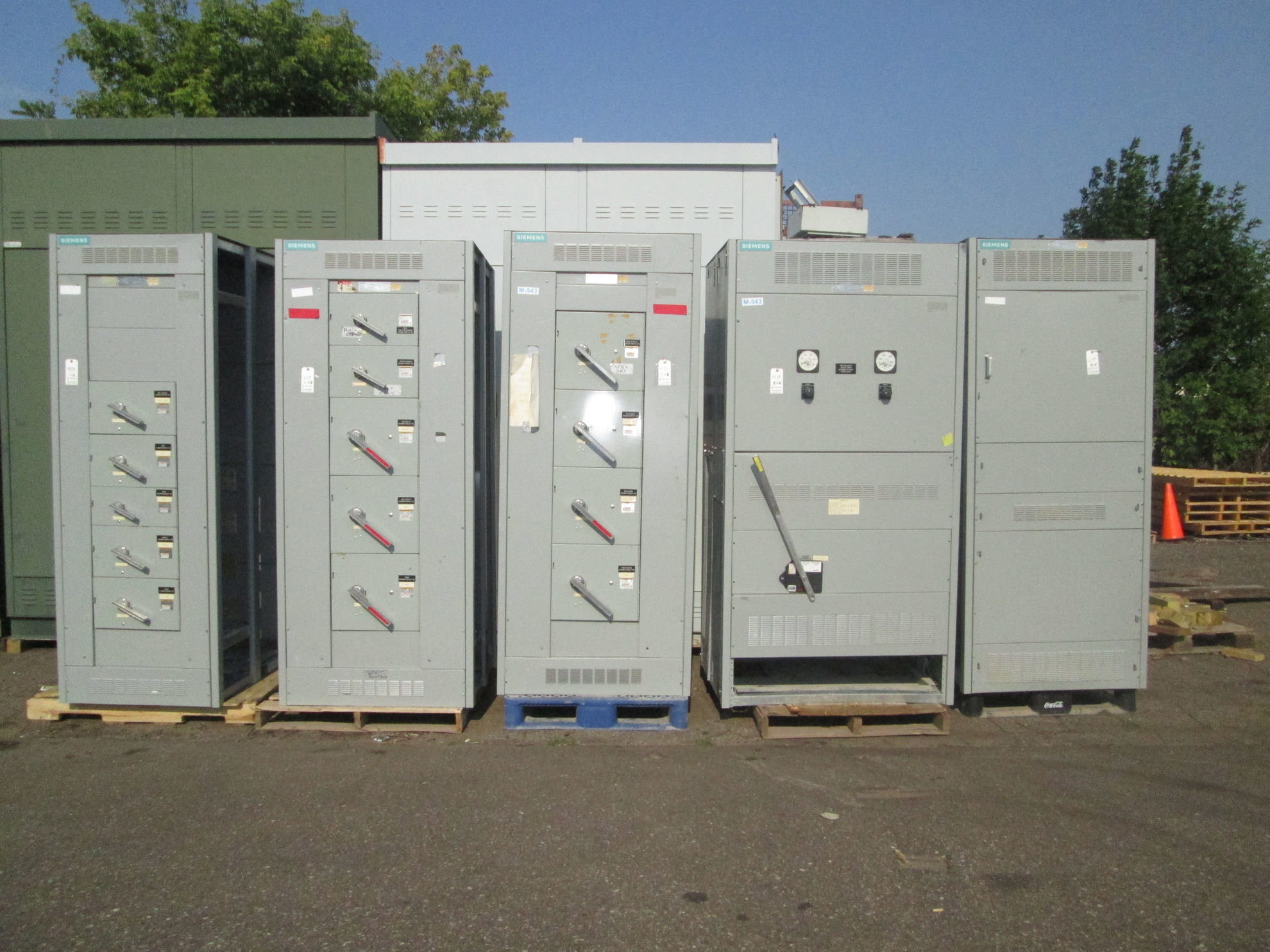

Siemens 3000 Amp QA-3033 Fusible Main Switchboard 208Y/120 Volt 3Ph 4W NEMA 1 R&G

Product description:

Siemens fusible switchboard; 3000 amp Pringle switch fusible main, QA-3033, 208Y/120 volt, 3 phase, 4 wire, NEMA 1 indoor. With ITE Vacu-Break switch fusible distribution. Reconditioned & guaranteed with a one-year warranty.

5 Sections:

Pull/Empty Panel

Main Fusible Switch Panel

  • Type FC II
  • Series 6
  • Pringle Main Fusible Switch
    • 3000 Amp
    • 208Y/120 Volt
    • 60Hz
    • Serial# F50403S
    • Cat# QA-3033
    • Dwg# M-49499
  • Metering

Fusible ITE Vacu-Break Distribution Panel 1

  • (4) 400 Amps
    • Cat# V7H3205
    • 240 Volts
    • 3 Poles
    • 3 Phase

Fusible ITE Vacu-Break Distribution Panel 2

  • (2) 200 Amps
    • Cat# V7F3204
    • 240 Volts
    • 3 Poles
    • 3 Phase
  • (2) 400 Amps
    • Cat# V7H3205
    • 240 Volts
    • 3 Poles
    • 3 Phase
  • (1) 600 Amps
    • Cat# V7H3206
    • 240 Volts
    • 3 Poles
    • 3 Phase

Fusible ITE Vacu-Break Distribution Panel 3

  • (1) 100 Amps
    • Cat# V7E3203
    • 240 Volts
    • 3 Poles
    • 3 Phase
  • (4) 200 Amps
    • Cat# V7F3204
    • 240 Volts
    • 3 Poles
    • 3 Phase

Dimensions: From Right to Left

Pull/ Empty Panel

  • 38" Width
  • 38" Depth
  • 90" Height

Main Pringle Fusible Switch Panel

  • 46" Width
  • 38" Depth
  • 90" Height

Fusible Distribution Panel 1

  • 38" Width
  • 38" Depth
  • 90" Height

Fusible Distribution Panel 2

  • 38" Width
  • 38" Depth
  • 90" Height

Fusible Distribution Panel 3

  • 32" Width
  • 38" Depth
  • 90" Height

M-543             LOC: Pillar 116/117

Specs:

  • Manufacturer : Siemens, ITE
  • Style : Fusible
  • Main Type : Fusible
  • Amperage : 3000
  • Voltage : 208Y/120
  • Phase : 3
  • Wire : 4
  • Ground Fault : No
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
Brands: ITE , Siemens
SKU: M543
