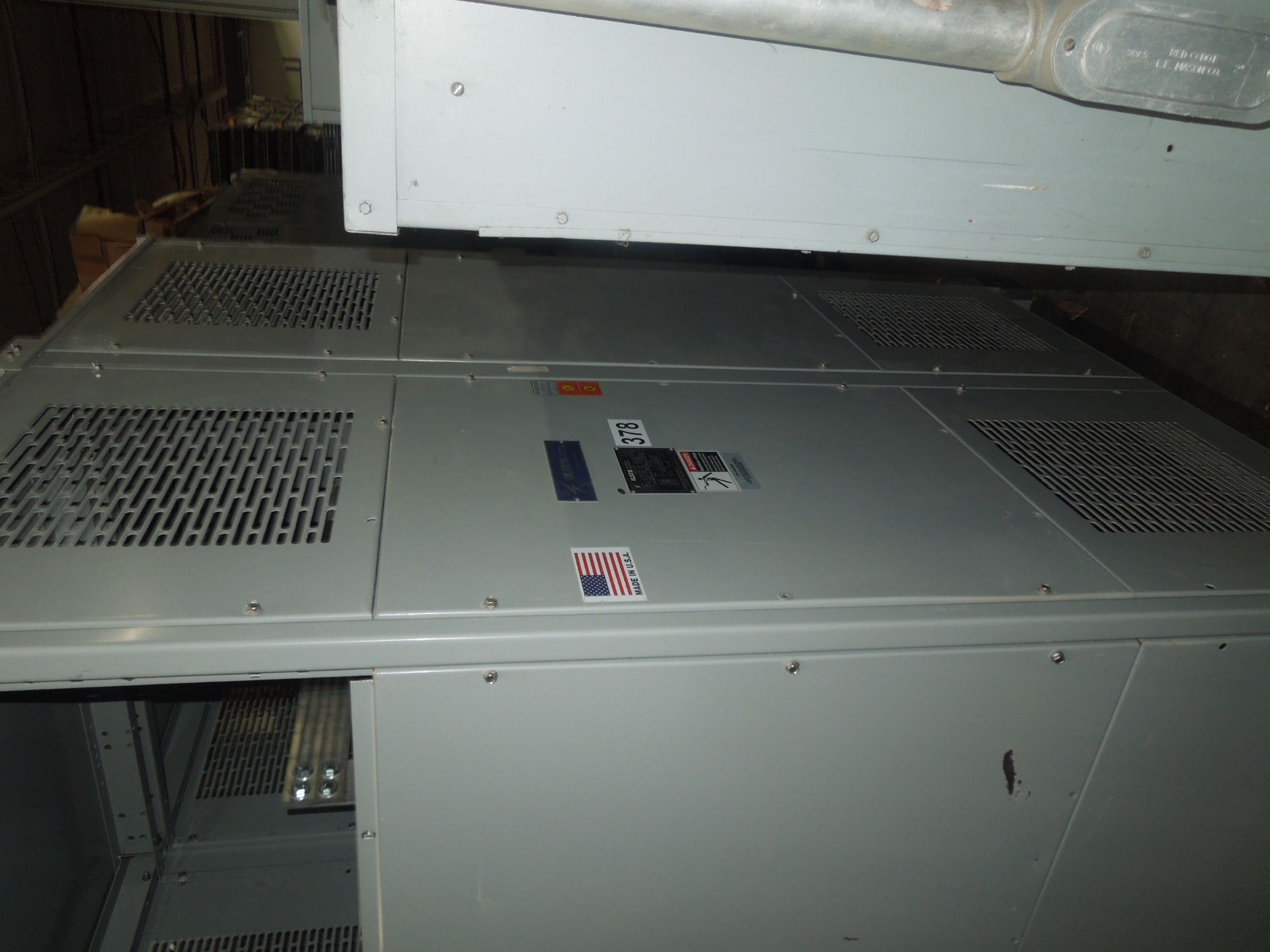

Olsun Medium Voltage Dry Type Transformer | 300 KVA 13800-208Y/120 Volt | 3 Phase NEMA 1 R&G

Product description:

Olsun Medium Voltage Dry Type Transformer: Serial # SMV300MD-4, 300 KVA, primary voltage: 13800 volt, secondary voltage: 208Y/120 volt, 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• Impedance: 5.75%
• 150°C Temp Rise
• Conductor: AL/AL
  • Taps:
    • 14490V
    • 14145V
    • 13800V
    • 13455V
    • 13110V
• NEMA 1 Enclosure
• 64.5" Width x 48" Depth x 91" Height
• Weight: 3400 lbs

MVDT # 378                               LOC: SW Corner
