Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O

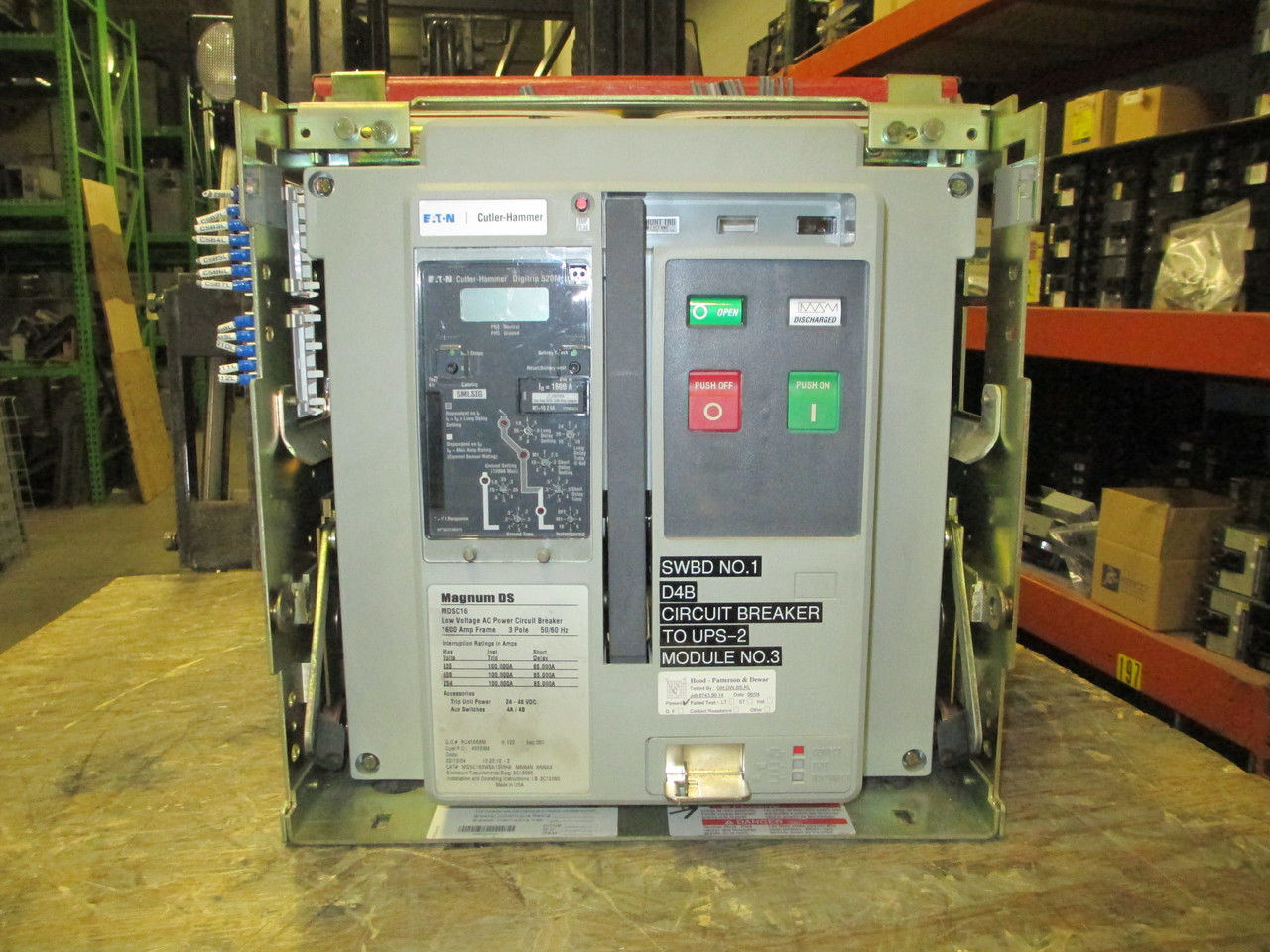

Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Cutler-Hammer Magnum DS MDSC16 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O

Product description:

Cutler-Hammer/ Eaton MDSC16 Magnum DS low voltage AC power circuit breaker; cat # MDSC163WEA 12MHA MNN4N NNNAX, 1600 amp, 600 volt AC, 3 pole, manually operated (M/O), draw-out (D/O). Used tested with report.

  • Digitrip 520M Trip Unit
    • Cat # 5MLSIG
    • LSIG Functions
    • Ground Fault
  •  1600 Amp Rating Plug
    • Cat # 5720B33G14
    • M1 = 19.2 kA
  •   Interrupting Ratings
    • 508 Volt @ 100 kA
  • Accessories
    • Trip Unit Power
      • 24-48 Volt DC
    • Auxiliary Switches
      • 4A / 4B
  • Draw-out Carriage
    • Cat # MN203PADNNNNNNC

MC-CB # 1440 -- LOC: 1B1                            MC-CB # 1454 -- LOC: 1D2

MC-CB # 1439 -- LOC: 1A1

Specs:

  • Manufacturer : Cutler-Hammer, Eaton
  • Family : Magnum DS
  • Frame : MD
  • Amperage : 1600
  • Voltage : 600V
  • Poles : 3
  • Shunt Trip : No
  • Ground Fault : Yes
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous, Ground
  • Operation : Manual
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brand: Cutler-Hammer
Availability: In stock
SKU: MCCB1440
$5,500.00
