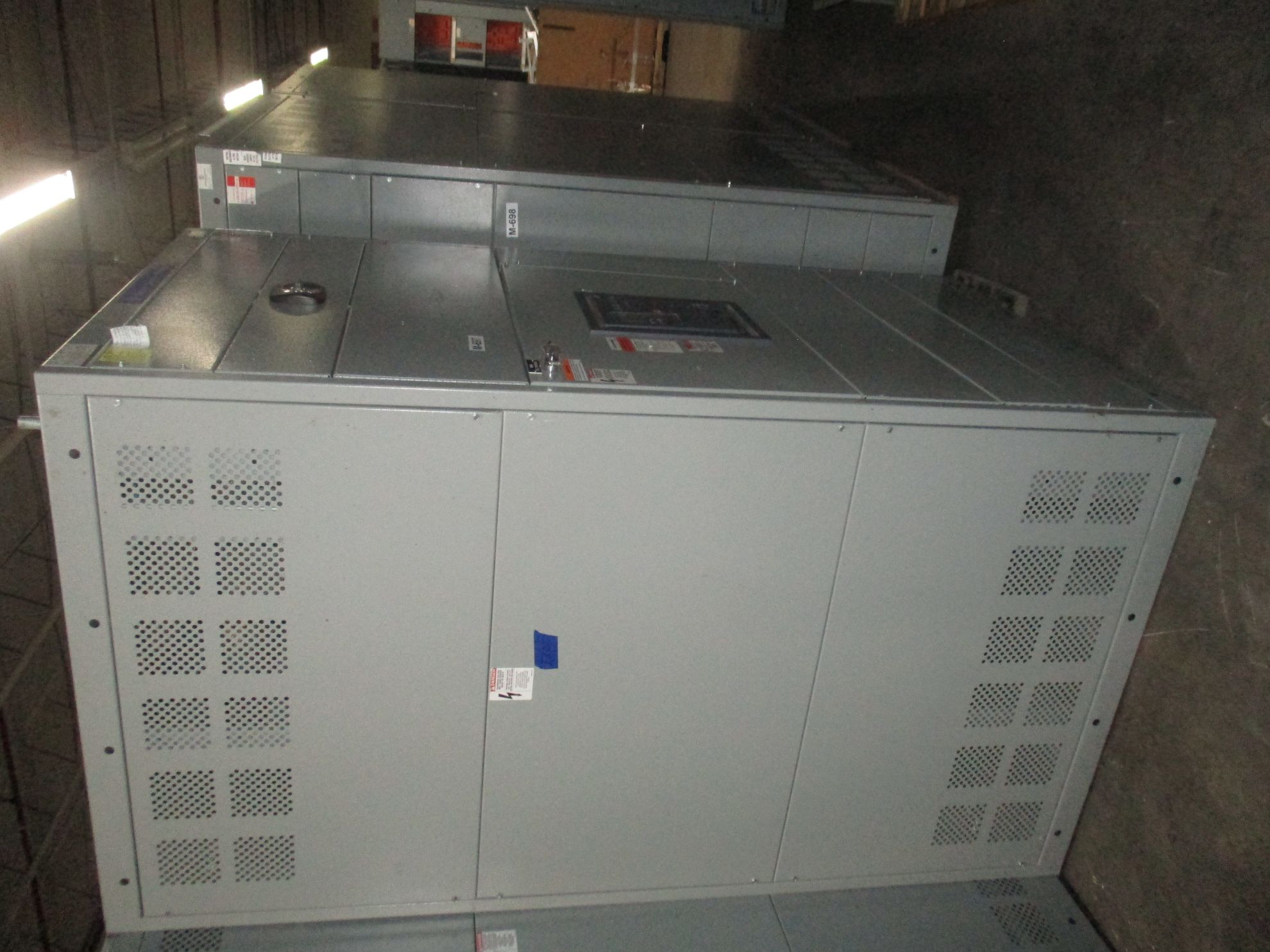

General Electric Spectra Series Switchboard 6000 Amp Main Breaker 480Y/277 Volt 3 Ph 4 W NEMA 1 R&G

Product description:

General Electric Spectra Series Switchboard; 6000 amp main breaker, 480Y/277 volt, 3 phase, 4 wire, LSIG functions, ground fault, RELT, NEMA 1 indoor rated. With 2 sections of breaker distribution. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Main Breaker Panel

• Main Relt Switch
• 6000 Amp EntelliGuard G Low Voltage Main Circuit Breaker
  • Cat # GB60M4
  • EntelliGuard TU Trip Unit
    • Cat # GUM60L4X1AFXXXX
      • LSIG Functions
  • 6000 Amp Rating Plug
    • Cat # GTP6000U6064

Breaker Distribution Panel 1

• Surge Protection Device
• ABB Breakers
  • (1) 600 Amp
  • (3) 400 Amp
  • (4) 250 Amp
  • (3) 150 Amp
  • (3) 100 Amp

Breaker Distribution Panel 2

• ABB Breakers
  • (2) 600 Amp
  • (6) 400 Amp
  • (1) 250 Amp
  • (1) 100 Amp

Dimensions:

• Main Panel
  • 50" Width
  • 50" Depth
  • 90" Height

• Distribution 1 Panel
  • 50" Width
  • 50" Depth
  • 90" Height

• Distribution 2 Panel
  • 50" Width
  • 50" Depth
  • 90" Height

M697 & M698                       LOC: Pillar 145 (Across from SPR E10)
