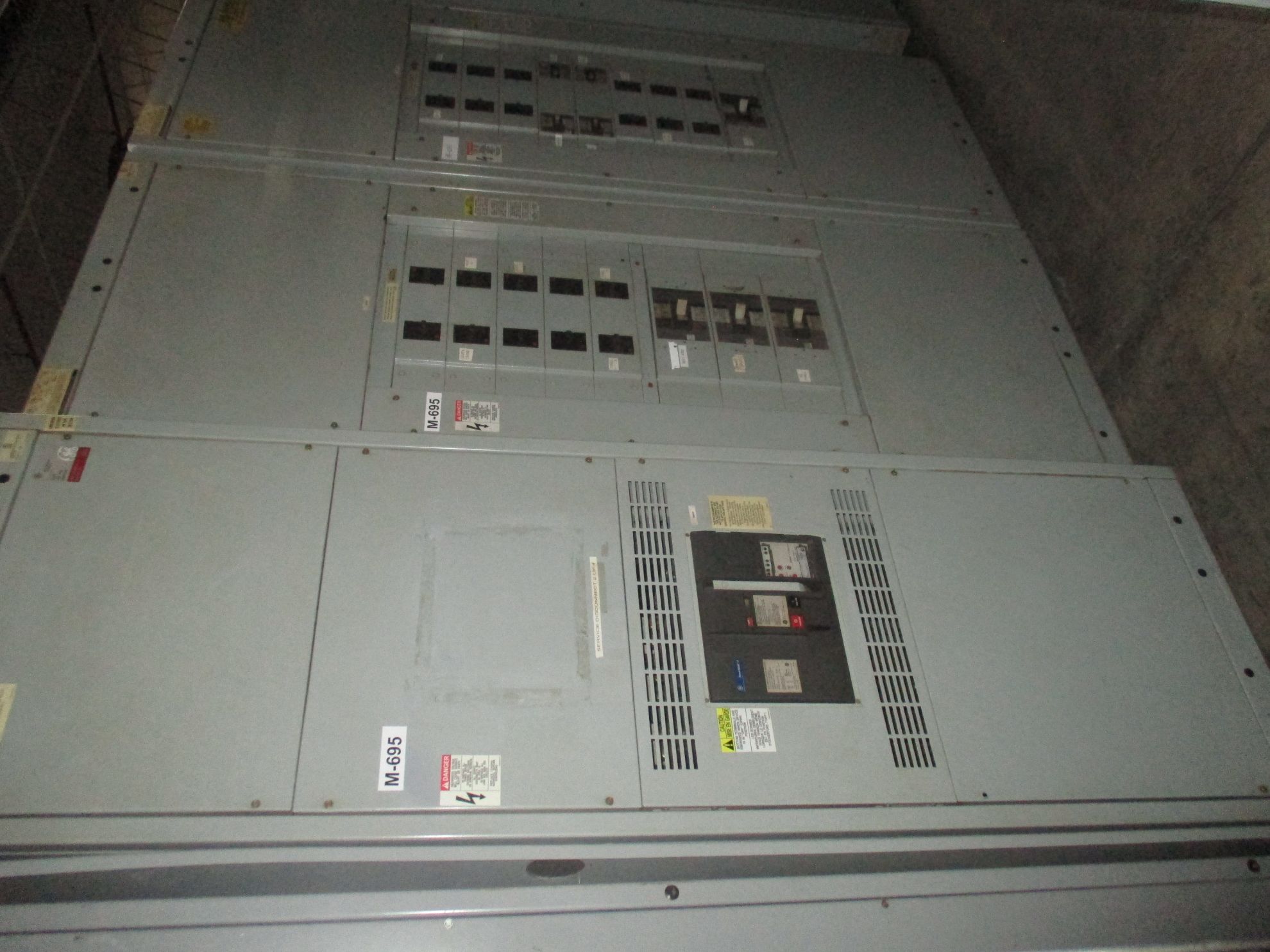

General Electric Spectra Series Switchboard 1600 Amp Main Breaker 480Y/277 Volt 3 Ph 4 W NEMA 1 R&G

Product description:

General Electric Spectra Series Switchboard; 1600 amp main breaker, 480Y/277 volt, 3 phase, 4 wire, LI functions, NEMA 1 indoor rated. With (2) spectra breaker distribution panels. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Main Breaker Panel

• Power Break II Main Breaker
  • Cat # SSF16D216
  • 1600 Amp
  • Rating Plug
    • 1600 Amp
    • Cat # TR16C1600
  • Power + Trip Unit
    • Cat # D216LIT1
    • LI Functions

Distribution 1 Panel

• (1) SGHA36AT0600
  • 600 Amp Rating Plug
    • Cat # SRPG600A
• (2) SGHA36AT0400
  • 400 Amp Rating Plug
    • Cat # SRPG400A
• TEY Breakers:
  • (1) 100 Amp
  • (6) 60 Amps
  • (2) 40 Amps
  • (1) 30 Amps

Distribution 2 Panel

• (1) SGHA36AT0600
  • 600 Amp Rating Plug
    • CAt # SRPG600A600
• (4) SFHA36AT0250
  • 250 Amp Rating Plug
    • Cat # SRPF250A
• TEY Breakers:
  • (5) 60 Amps
  • (1) 50 Amps
  • (4) 40 Amps
  • (2) 25 Amps

Dimensions:

• Main Panel
  • 30" Width
  • 25" Depth
  • 90" Height
• Dist 1 Panel
  • 35" Width
  • 25" Depth
  • 90" Height
• Dist 2 Panel
  • 35" Width
  • 25" Depth
  • 90" Height

M-695                          LOC: Pillar 134 (SPR F-9)
