General Electric Medium Voltage Dry Type Transformer | 300 KVA 2400-208Y/120 Volt | 3 Phase NEMA 1 R&G

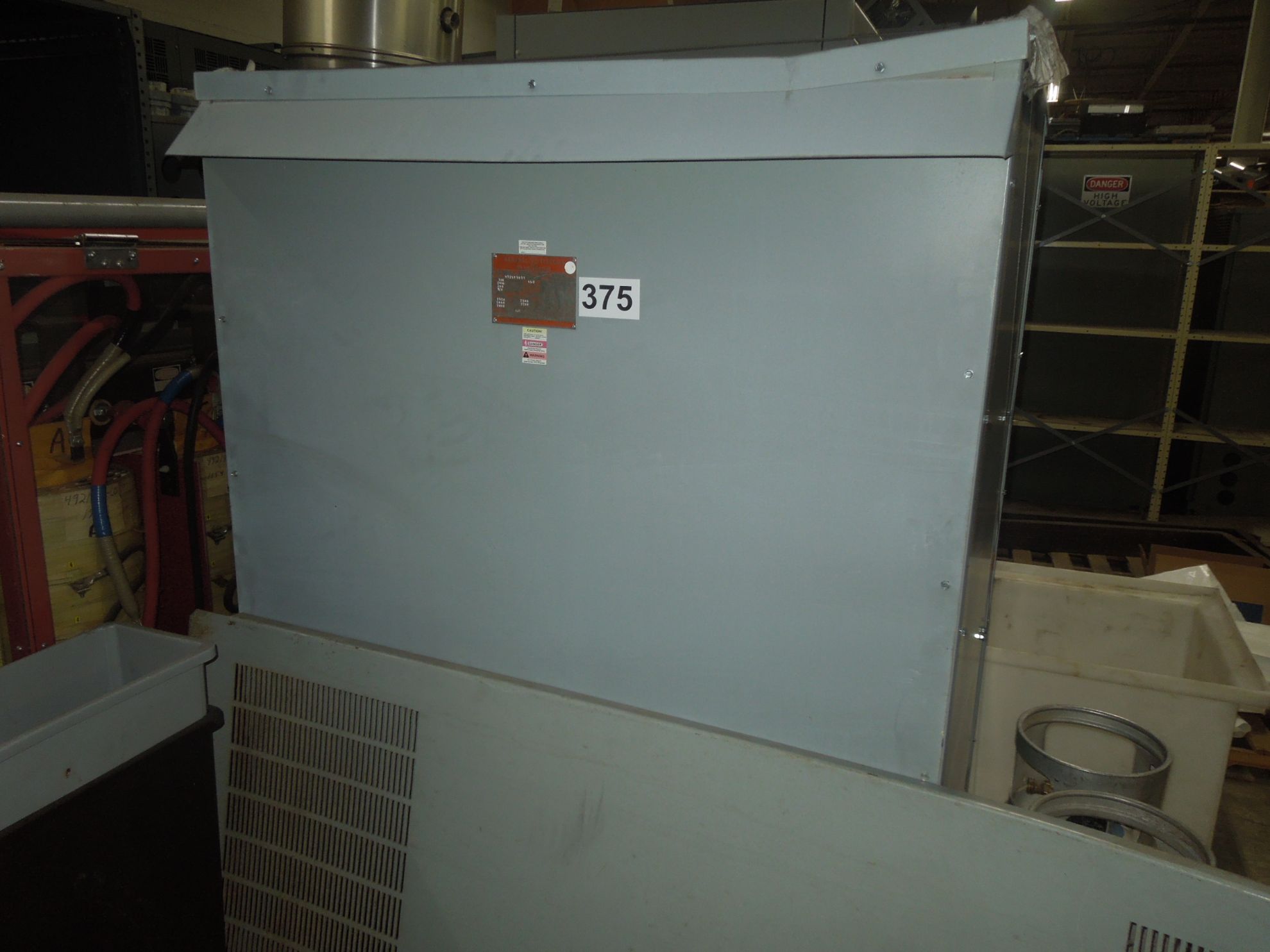

Picture of General Electric Medium Voltage Dry Type Transformer | 300 KVA 2400-208Y/120 Volt | 3 Phase NEMA 1 R&G

Picture of General Electric Medium Voltage Dry Type Transformer | 300 KVA 2400-208Y/120 Volt | 3 Phase NEMA 1 R&G

Be the first to review this product

Product description:

General Electric Medium Voltage Dry Type Transformer: Model # 9T25B5837, 300 KVA, primary voltage: 2400 volt, secondary voltage: 208Y/120 volt, 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

Impedance: 4.4%
150°C Temp Rise
Conductor: AL/AL
- Taps:
  - 2520V
  - 2460V
  - 2400V
  - 2340V
  - 2280V
NEMA 1 Enclosure
54" Width x 36" Depth x 68" Height

MVDT # 375 LOC: SW Corner

Specs:

Manufacturer : General Electric
KVA : 300
Primary Voltage : 2400V
Secondary Voltage : 208/120V
Phase : 3
Indoor/Outdoor : Indoor
Material : Aluminum
Condition : Refurbished

Brand: General Electric

Availability: In stock

SKU: MVDT375

$4,500.00
