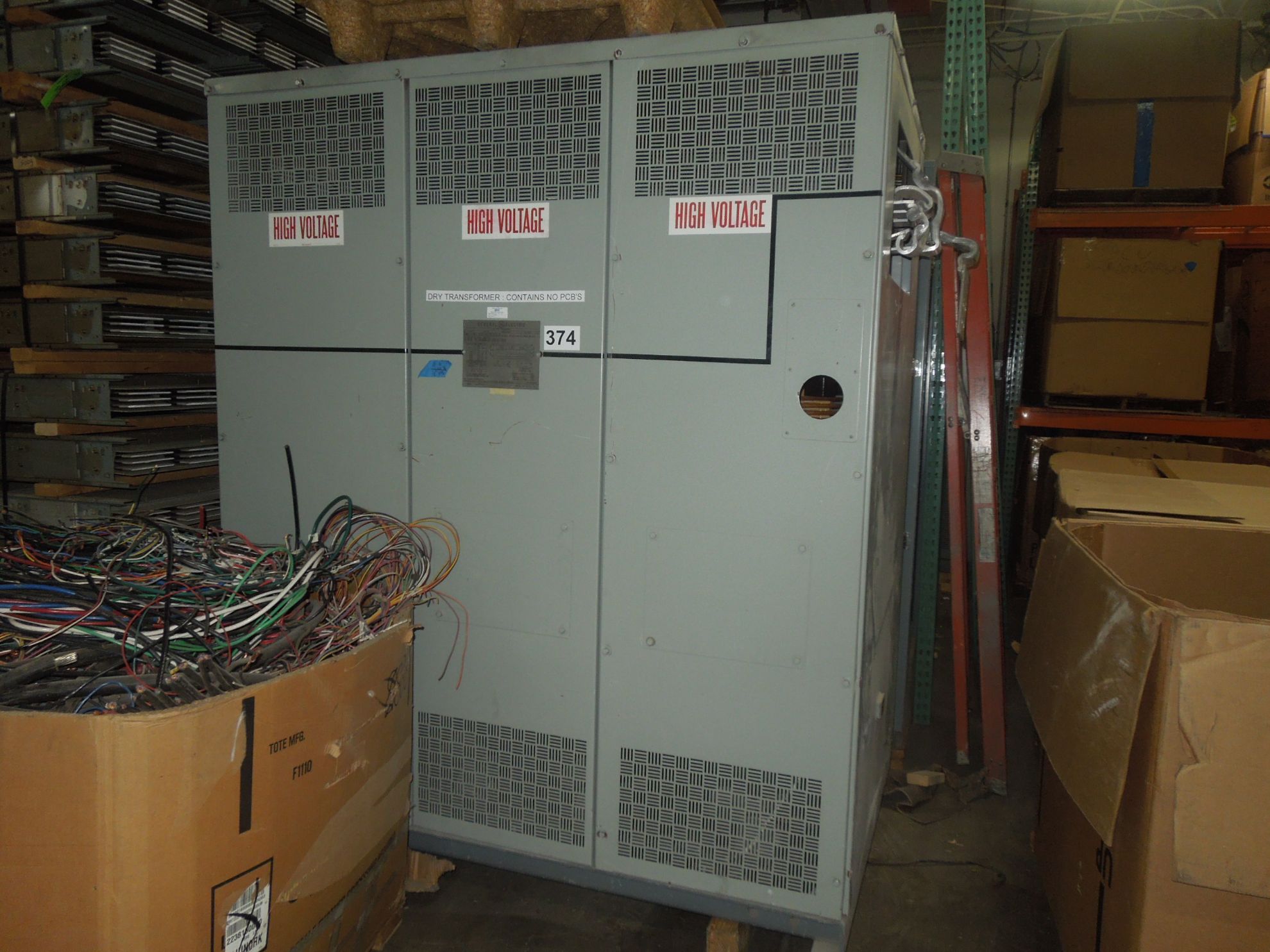

General Electric Medium Voltage Dry Type Transformer | 1000/1500 KVA 13800-480Y/277 Volt | 3 Phase NEMA 1 R&G

Product description:

General Electric Medium Voltage Dry Type Transformer: Serial # 884759, 1000/1500 KVA, primary voltage: 13800 volt, secondary voltage: 480Y/277 volt, 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• Impedance: 5.7%
• 80°C/150°C Temp Rise
• Conductor: AL/AL
  • Taps:
    • 14400V
    • 14100V
    • 13800V
    • 13500V
    • 13200V
• NEMA 1 Enclosure
• 76" Width x 50" Depth x 90" Height
• Weight: 7100 lbs

MVDT# 374                               LOC: SW Corner
