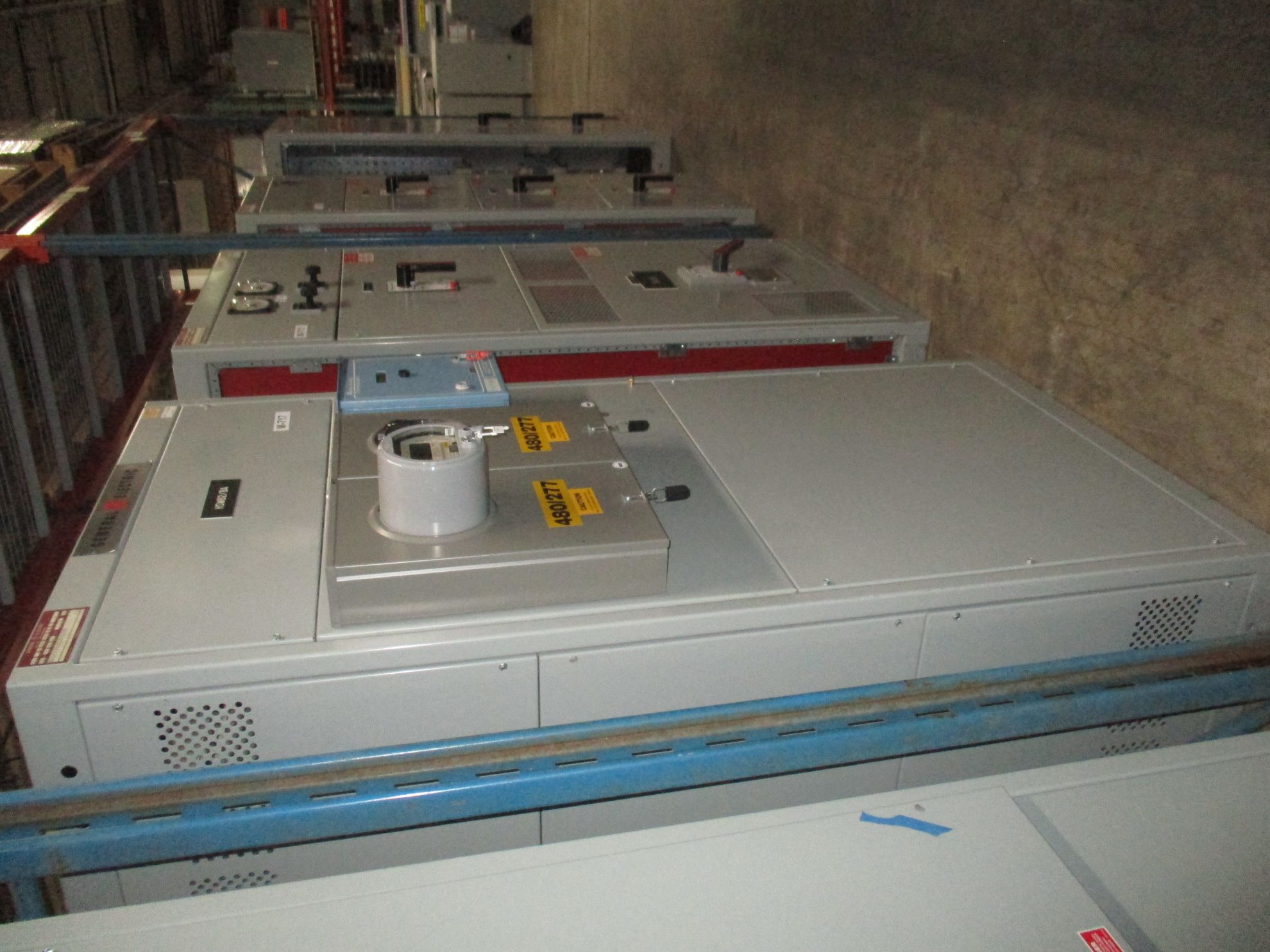

General Electric AV-Line Switchboard 3000 Amp Main Breaker 480Y/277 Volt 3 Ph 4 W NEMA 1 R&G

Product description:

General Electric AV-Line Switchboard; 3000 Amp Power Break main breaker, 480Y/277 volt, 3 phase, 4 wire, LIG functions, ground fault, NEMA 1 indoor rated. With (1) Pull section, (1) Main section & (2) Breaker distribution sections. Reconditioned & guaranteed with a one-year warranty.

4 Sections: From Left to Right

Pull Panel

Main Breaker Panel

• AC Amperes & AC Volts Meters
• (1) 3000 Amp Power Break Main Breaker
  • Cat # TP3030SS
  • RMS-9 Micro Versa Trip Unit
    • Cat # TS32LIGT2
    • LIG Functions
  • 3000 Amp Rating Plug
    • Cat # TR30S3000
• (1) 800 Amp PowerBreak Distribution Breaker
  • Cat # THP88SS

PowerBreak Breaker Distribution 1 Panel

• (1) 800 Amp Breaker
  • Cat # THP88SS
• (2) 800 Amp Breaker
  • Cat # TP88SS

PowerBreak Breaker Distribution 2 Panel

• (2) 200 Amp Breaker
  • Cat # TP82SS

Dimensions:

• Pull
  • 40" Width
  • 40" Depth
  • 78" Height
• Main
  • 40" Width
  • 40" Depth
  • 78" Height
• Dist 1
  • 40" Width
  • 30" Depth
  • 78" Height
• Dist 2
  • 40" Width
  • 40" Depth
  • 78" Height
