GE Wave Pro 5000 Amp Main Tie Main w/ Ground Fault 480Y/277 Volt NEMA 1 R&G

Product description:

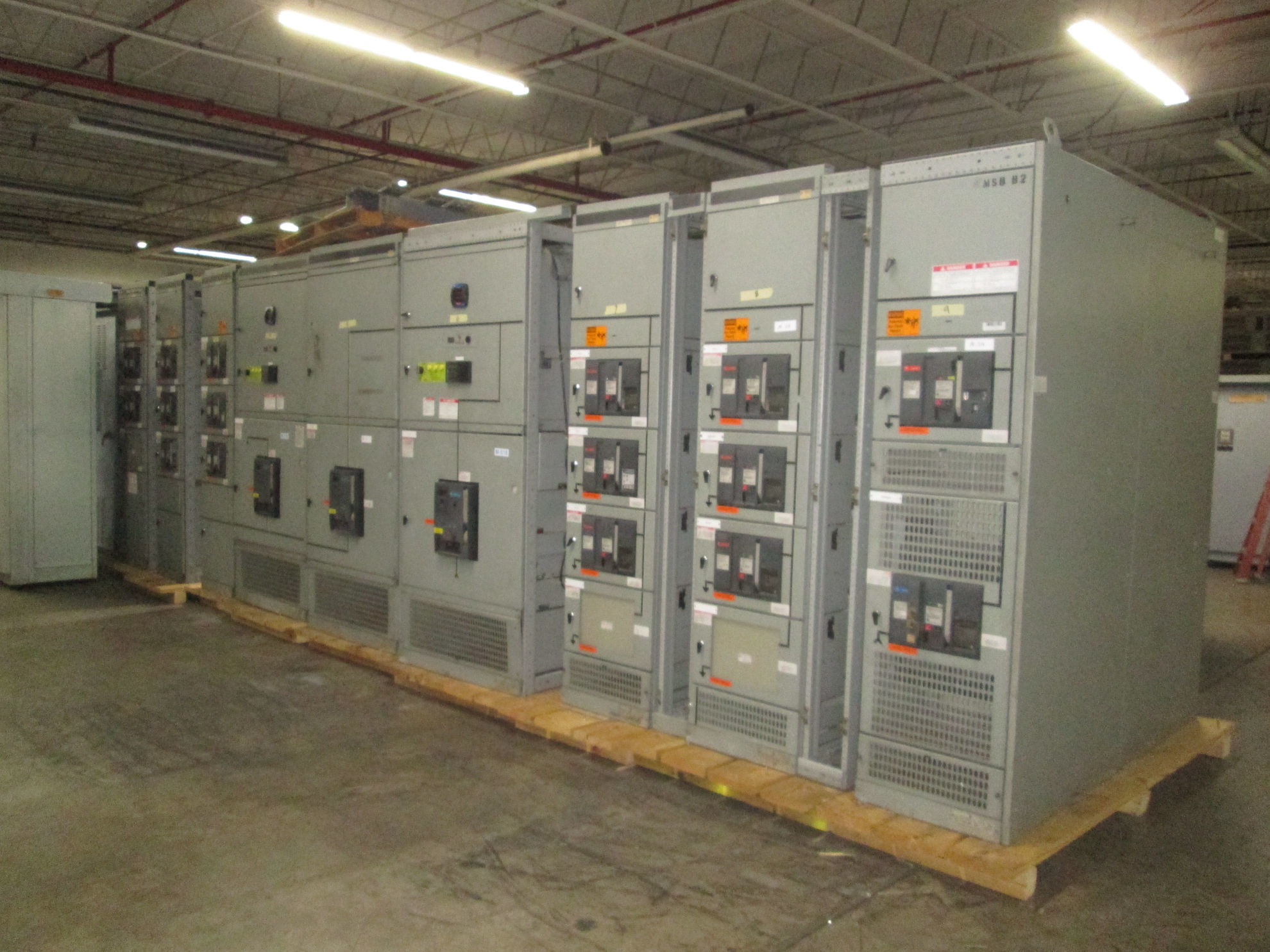

General Electric Wave Pro Main-Tie-Main Low Voltage Power Circuit Breaker; 5000 amp, 480Y/277 volt, ground fault, 3 phase, 4 wire. NEMA 1 indoor. With 3000 amp generator breaker & 6 sections of Power Break II distribution sections. Reconditioned & guaranteed with a one year warranty.

Main-Tie-Main Sections (Sections 4-6)

• Transient Voltage Surge Suppressor
• Power Quality Meter
• Main Breaker
  • WavePro Low Voltage Power Circuit Breaker
  • Rating Plug
    • 5000 Amp
    • Cat# TR50B5000
• Ground Fault
• NEMA 1 Indoor

6 Distribution Sections: From Left to Right

• Power Break II Circuit Breakers

Section 1:

• (1) 1600 Amp
  • SHD16B216
  • 1600 Amp Rating Plug
• (1) 800 Amp
  • SHD08D208
  • 400 Amp Rating Plug

Section 2:

• (1) 1600 Amp
  • SHD16D216
  • 1600 Amp Rating Plug
• (1) 800 Amp
  • SHD08D208
  • 600 Amp Rating Plug
• (1) 800 Amp
  • SHD08B208
  • 800 Amp Rating Plug

Section 3:

• (1) 1600 Amp
  • SHF16G216
  • 1200 Amp Rating Plug
• (2) 800 Amp
  • SHD08D208
  • 800 Amp Rating Plug

Section 7:

• (1) 1600 Amp
  • SHD16D216
  • 1600 Amp Rating Plug
• (1) 800 Amp
  • SHD08D208
  • 600 Amp Rating Plug
• (1) 800 Amp
  • SHD08D208
  • 400 Amp Rating Plug

Section 8:

• (1) 1600 Amp
  • SHD16D216
  • 1200 Amp Rating Plug
• (2) 800 Amp
  • SHD08D208
  • 800 Amp Rating Plug

Section 9:

• (1) 3000 Amp
  • SSD30D330
  • 3000 Amp Rating Plug
• (1) 1600 Amp
  • SHD16B216
  • 1200 Amp Rating Plug

Dimensions: From Left to Right

Sections 1,2, & 3 (Distribution)

• 23" Width
• 80" Depth
• 92" Height

Sections 4, 5, & 6 (Main-Tie-Main)

• 38" Width
• 80" Depth
• 92" Height

Sections 7, 8, & 9 (Distribution)

• 23" Width
• 80" Depth
• 92" Height

M-518     LOC: Pillar 155
