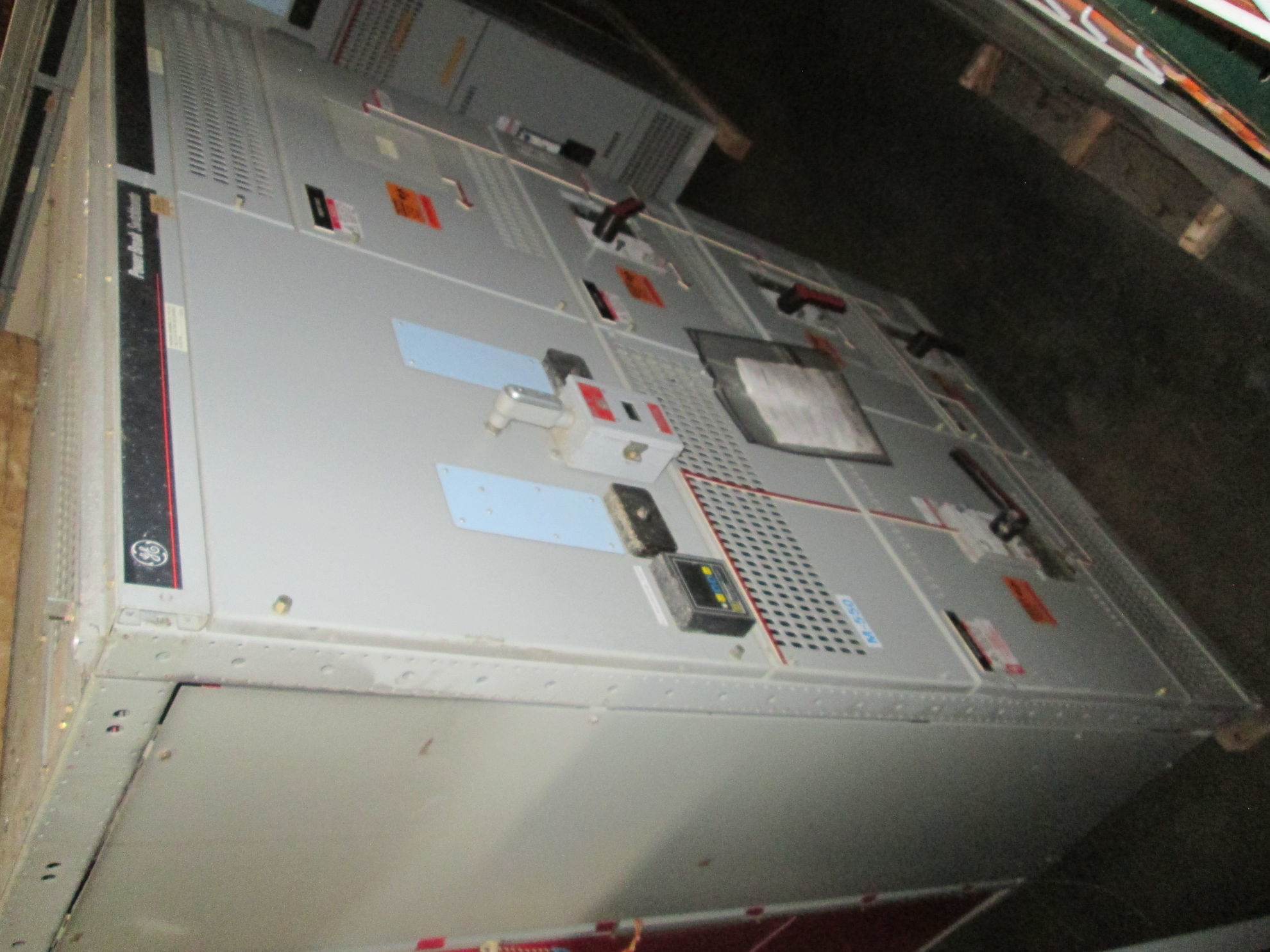

GE Power Break Switchboard Main-Tie-Main TC4040TTHZR 4000 Amp 480Y/277 Volt AC NEMA 1 R&G

Product description:

General Electric Power Break Switchboard; Main-Tie-Main TC4040TTHZR, 4000 amp, 480Y/277 volt AC, 3 pole, ground fault, NEMA 1 indoor rated. With Power Break I breaker distribution. Reconditioned & guaranteed with a one-year warranty.

5 Sections: From Left to Right

Main Breaker 1 Panel

  • A.C. Kilowatthour Meter
  • PowerLogic Power Meter
  • Power Break Main Breaker
    • 4000 Amp
    • Cat# TC4040TTHZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 4000 Amp Sensor
      • Cat# C440LSHGZ2
      • Ground Fault
      • 3000 Amp Rating Plug
        • Cat# TR40B3000

Breaker Distribution 1 Panel

  • (2) 1600 Amp Power Break
    • Cat# TC1616TTZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 1600 Amp Sensor
      • Cat# C316LSIGZ2
      • Ground Fault
      • 1000 Amp Rating Plug
        • Cat# TR16B1000
  • (1) 800 Amp Power Break
    • Cat# TC88TTZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 800 Amp Sensor
      • Cat# C200LSIGZ2
      • Ground Fault
      • 800 Amp Rating Plug
        • Cat# TR8B800

Tie Breaker Panel

  • Electronic Power Meter
  • 4000 Amp Power Break
    • Cat# TC4040TTHZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 4000 Amp Sensor
      • Cat# C440LSHGZ2
      • Ground Fault
      • 3000 Amp Rating Plug
        • Cat# TR40B3000

Breaker Distribution 2 Panel

  • (2) 1600 Amp Power Break
    • Cat# TC1616TTZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 1600 Amp Sensor
      • Cat# C316LSIGZ2
      • Ground Fault
      • 1000 Amp Rating Plug
        • Cat# TR16B1000
  • (1) 800 Amp Power Break
    • Cat# TC88TTZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 800 Amp Sensor
      • Cat# C200LSIGZ2
      • Ground Fault
      • 800 Amp Rating Plug
        • Cat# TR8B800

Main Breaker 2 Panel

  • A.C. Kilowatthour Meter
  • PowerLogic Power Meter
  • Power Break Main Breaker
    • 4000 Amp
    • Cat# TC4040TTHZR
    • 480 Volt AC
    • MicroVersaTrip Plus Trip Unit
      • 4000 Amp Sensor
      • Cat# C440LSHGZ2
      • Ground Fault
      • 3000 Amp Rating Plug
        • Cat# TR40B3000

Dimensions:

All 5 sections are the same dims

  • 30" Width
  • 60" Depth
  • 90" Height

M-550          LOC: Pillar 38

Specs:

  • Manufacturer : General Electric
  • Style : Breaker
  • Main Type : Circuit Breaker
  • Amperage : 4000
  • Voltage : 480Y/277
  • Phase : 3
  • Wire : 4
  • Indoor/Outdoor : Indoor
  • Ground Fault : Yes
  • Condition : Refurbished
SKU: M550
