GE Power Break Switchboard 3000 Amp 480Y/277 Volt AC 3Ph 4W NEMA 1 R&G

Product description:

General Electric Power Break Switchboard; 3000 amp main, 480Y/277 volt AC, 3 phase, 4 wire, NEMA 1 indoor, breaker distribution. Reconditioned & guaranteed with a one-year warranty.

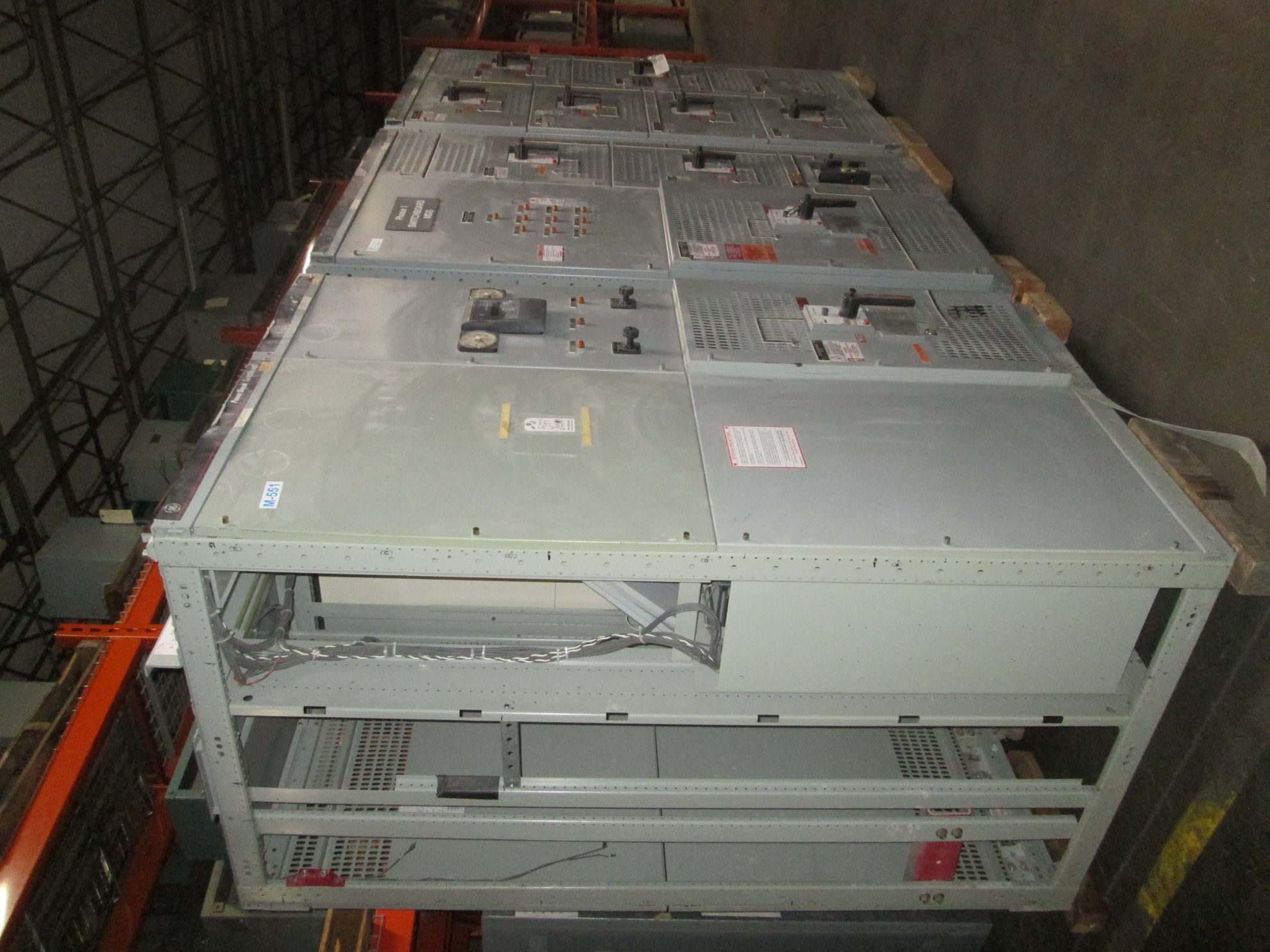

6 Sections: From Left to Right

Empty/ Pull Section

Main 1 Breaker Panel

• Electronic Power Meter
• 3000 amp main Power Break Panel
  • Cat# TC3030TTZE1R
  • 480 volt AC
  • 120 volt control voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# C330LSIR
    • 3000 amp sensor
    • 3000 amp rating plug
      • Cat# TR30B3000

Main 2 Breaker Panel

• Phase 1 Switchboard MDS
• 3000 amp main Power Break
  • Cat# TC3030TTZE1R
  • 480 volt AC
  • 120 volt control voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT32LSIGZ2
    • 3000 amp sensor
    • 3000 amp rating plug
      • Cat# TR30B3000

Breaker Distribution 1 Panel

• (1) 2000 Amp Power Break
  • Cat# THC2020TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT20LSIGZ2
    • 2000 Amp Sensor
    • 1200 Amp Rating Plug
      • Cat# TR20B1200
• (1) 2000 Amp Power Break
  • Cat# THC2020TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT20LSIGZ2
    • 1000 Amp Rating Plug
      • Cat# TR20B1000
• (1) 1600 Amp Power Break
  • Cat# THC1616TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT20LSIGZ2
    • 1200 Amp Rating Plug
      • Cat# TR16B1200

Breaker Distribution Panel 2

• (2) 1600 Amp Power Break
  • Cat# THC1616TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# C216LSIG22
    • 1600 Amp Rating Plug
      • Cat# TR16B1600
• (2) 1600 Amp Power Break
  • Cat# THC1616TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT20LSIGZ2
    • 1200 Amp Rating Plug
      • Cat# TR16B1200

Breaker Distribution Panel 3

• (1) 2000 Amp Power Break
  • Cat# THC2020TTZE1R
  • 480 Volt AC
  • 120 Control Voltage
  • MicroVersaTrip Plus Trip Unit
    • Cat# TT20LSIGZ2
    • 1600 Amp Rating Plug
      • Cat# TR20B1600
• (1) 2000 Amp Power Break
  • Cat# THC2020TTZE1R
  • 480 Volt AC
  • 120 Control Voltage

Dimensions:

Pull/Empty Panel

• 30" Width
• 50" Depth
• 90" Height

Main 1 Panel

• 22" Width
• 50" Depth
• 90" Height

Main 2 Panel

• 30" Width
• 50" Depth
• 90" Height

Distribution 1 Panel

• 22" Width
• 50" Depth
• 90" Height

Distribution 2 Panel

• 30" Width
• 50" Depth
• 90" Height

Distribution 3 Panel

• 23" Width
• 50" Depth
• 90" Height

M-556        LOC: Pillar 38/48
