Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O

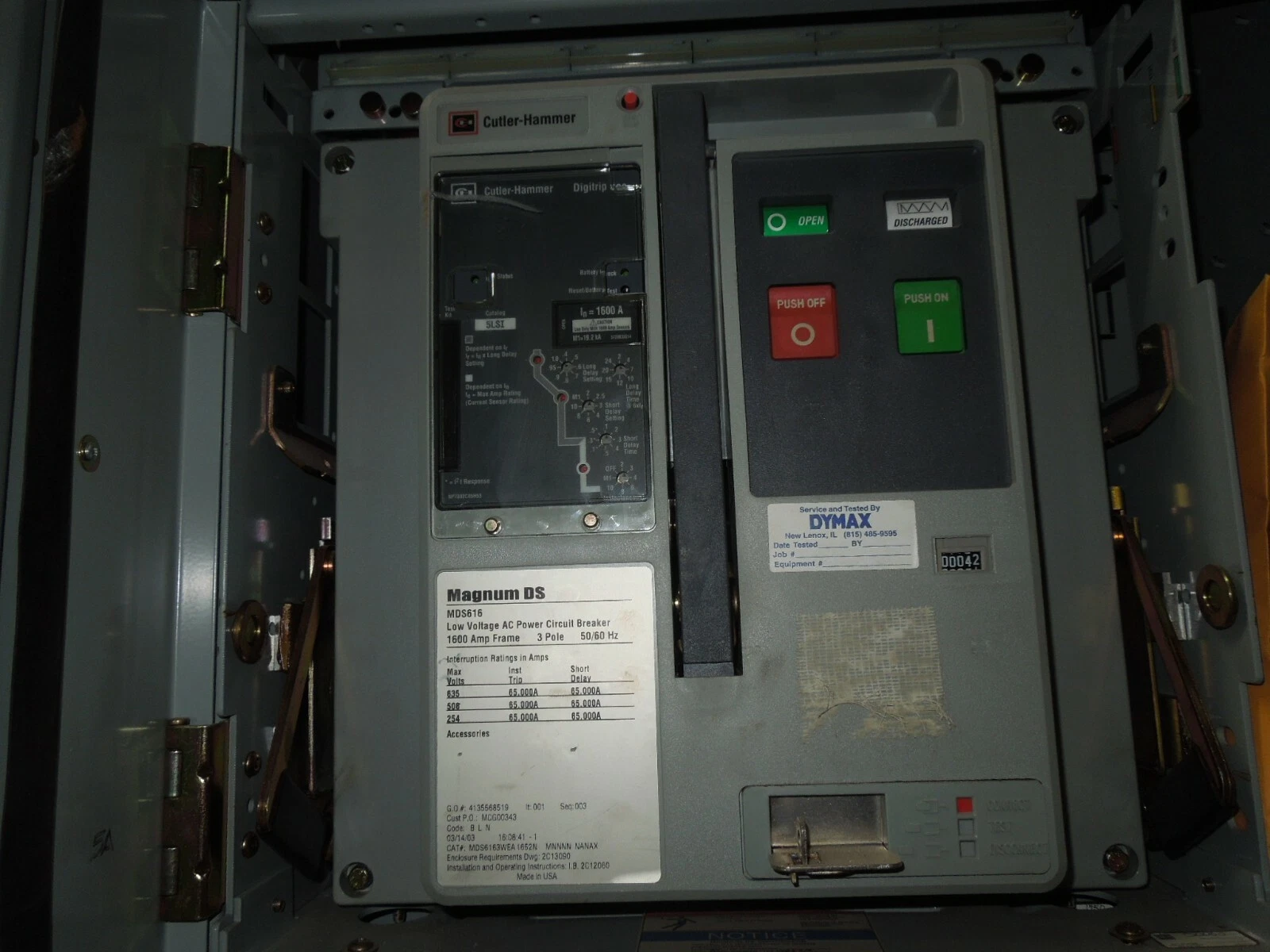

Picture of Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Picture of Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker 1600 Amp 600 Volt AC M/O D/O
Be the first to review this product

Product description:

Eaton/ Cutler-Hammer Magnum DS MDS616 Circuit Breaker; Cat # MDS6163WEA 1652N MNNNN NANAX, 1600 amp frame, 600 volt AC, 3 pole, manually operated (M/O), draw-out (D/O). With Digitrip 520 trip unit- cat # 5LSI, 1600 amp rating plug. Used tested with report.

MC-CB # 2309 -- LOC: 1D2

MC-CB # 2310 -- LOC: 1A1

Specs:

  • Manufacturer : Eaton, Cutler-Hammer
  • Family : Magnum DS
  • Frame : MD
  • Amperage : 1600
  • Voltage : 600V
  • Poles : 3
  • Ground Fault : No
  • Shunt Trip : No
  • Functions : LSI - Long-Time, Short-Time, Instantaneous
  • Operation : Manual
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brands: Eaton , Cutler-Hammer
Availability: In stock
SKU: MCCB2309
$4,000.00
