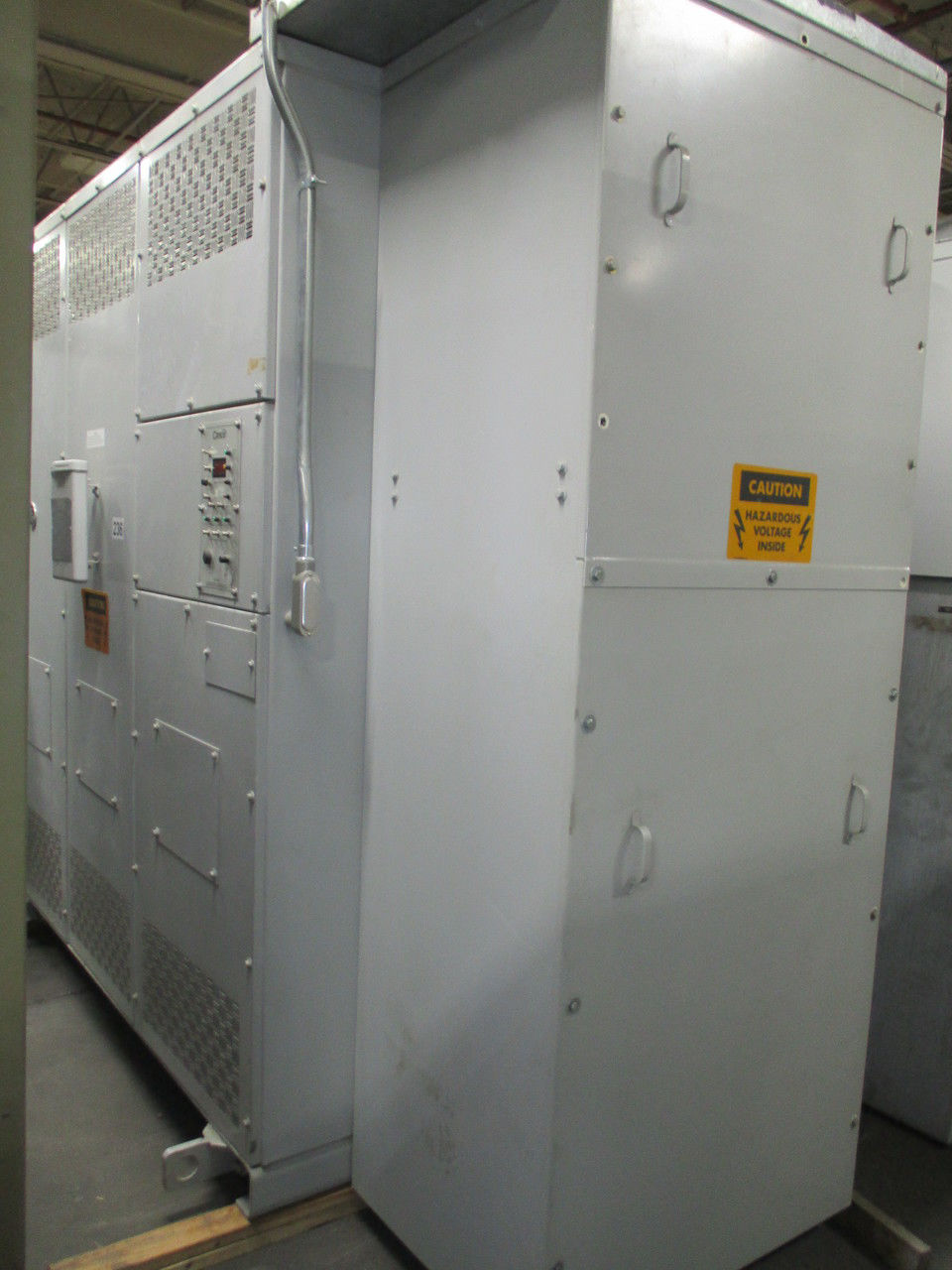

General Electric 2000/2800 KVA 12470-480Y/277V Cast Epoxy Resin Medium Voltage Dry Type Transformer R&G

Product description:

General Electric Cast Epoxy Resin Medium Voltage Dry Type Transformer: 2000 KVA (Continuous Self Cooled) / 2800 KVA (Continuous Forced Air (FA)), High Voltage: 12470 Volt, Low Voltage: 480Y/277 Volt, 3 Phase, 60Hz, NEMA 1 indoor. Reconditioned with 1 Year Warranty.

  • BIL: High Voltage - 95 KV
  • BIL: Low Voltage - 10 KV
  • Imp: 6.07% @ 2000 KVA
  • Low Voltage: 100°C Temp Rise
  • High Voltage: 80°C Temp Rise
  • Copper Wound
  • SER# R 275978 A
  • Taps & Amperage @ 2800 KVA:
    • 13090V, 124A
    • 12780V, 126A
    • 12470V, 130A
    • 12160V, 133A
    • 11850V, 136A
  • 3370 Amps @ 480 Volts (2800 KVA)
  • NEMA 1 Enclosure
  • 100"H x 90"W x 58"D
  • Transformer Enclosure Only Has Pull section on Right Side (28"W x 38"D)
  • Reconditioned with 1 Year Warranty

LOC: Pillar 174

Specs:

  • Manufacturer: General Electric
  • KVA: 2000/2800
  • Primary Voltage: 12470
  • Secondary Voltage: 480Y/277V
  • Indoor/Outdoor: Indoor
  • Condition: Refurbished
  • Phase: 3
  • Material: Copper
SKU: MVDT236
$40,000.00
