Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O

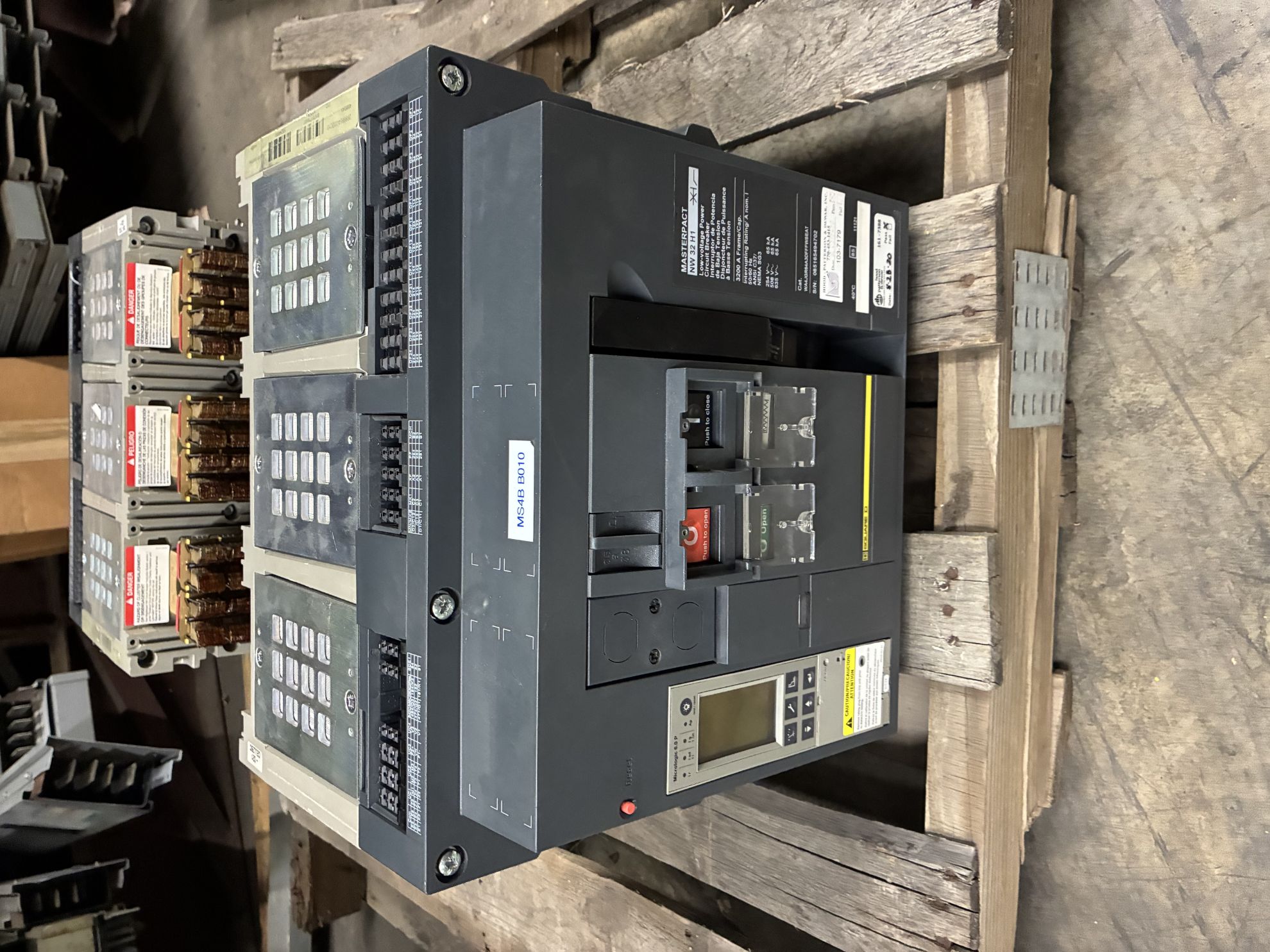

Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Picture of Square D MasterPact NW32H1 Circuit Breaker 2500 Amp 600 Volt AC M/O D/O
Be the first to review this product

Product description:

Square D NW32H1 MasterPact circuit breaker: Cat # WA4JGR64A3DFFFWSEAT, 2500 amp rated, 600 volt AC, three pole, 3200 amp frame, manually operated (M/O), draw-out (D/O). Used tested with report.

  • Micrologic 6.0 P Trip Unit
    • LSIG Functions
    • Ground Fault
  • 2500 Amp Rating Plug
  • Spring Charging Motor
    • 100-130 Volt AC
  • Shunt Trip
    • 100-130 Volt AC/DC
  • Closing Coil
    • 100-130 Volt AC/DC
  • 2nd Overcurrent Trip Switch
  • Second Shunt Trip

MC-CB # 2361              MC-CB # 2362

LOC: Pallet Near Pillar 112

Specs:

  • Manufacturer : Square D
  • Frame : NW
  • Family : Masterpact
  • Amperage : 3200
  • Voltage : 600V
  • Poles : 3
  • Ground Fault : Yes
  • Shunt Trip : Yes
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous, Ground
  • Operation : Manual
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brand: Square D
Availability: In stock
SKU: MCCB2361
Contact us for pricing:
1-800-328-1842
