Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O

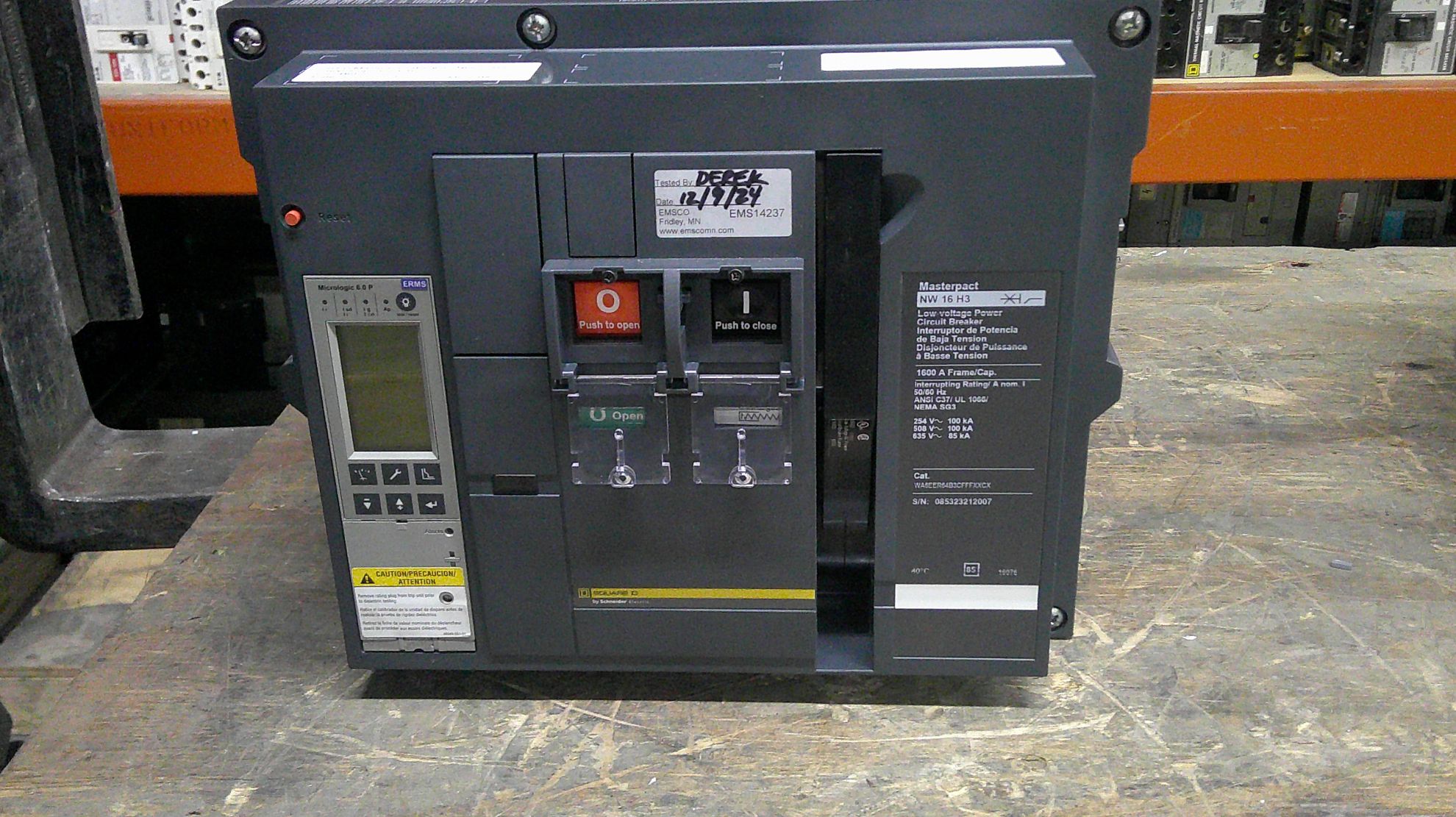

Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16H3 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Be the first to review this product

Product description:

Square D MasterPact NW16H3 Circuit Breaker; Cat # WA6EER64B3CFFFXXCA, 1600 amp, 600 volt AC, 3 pole, electrically operated (E/O), draw-out (D/O). Used tested with report.

  • MicroLogic 6.0 P Trip Unit
    • LSIG Functions
    • Ground Fault
  • Spring Charging Motor
    • 100-130 Volt AC
  • Shunt Trip
    • 100-130 Volt AC/DC
  • Closing Coil
    • 100-130 Volt AC/DC
  • Interrupting Ratings
    • 508 Volt @ 100 kA

MC-CB# 2216                       LOC: B6F5

Specs:

  • Manufacturer : Square D
  • Family : Masterpact
  • Frame : NW
  • Amperage : 1600
  • Voltage : 600V
  • Poles : 3
  • Ground Fault : Yes
  • Shunt Trip : Yes
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous, Ground
  • Operation : Electric
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brand: Square D
Availability: In stock
SKU: MCCB2216
Contact us for pricing:
1-800-328-1842
