Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O

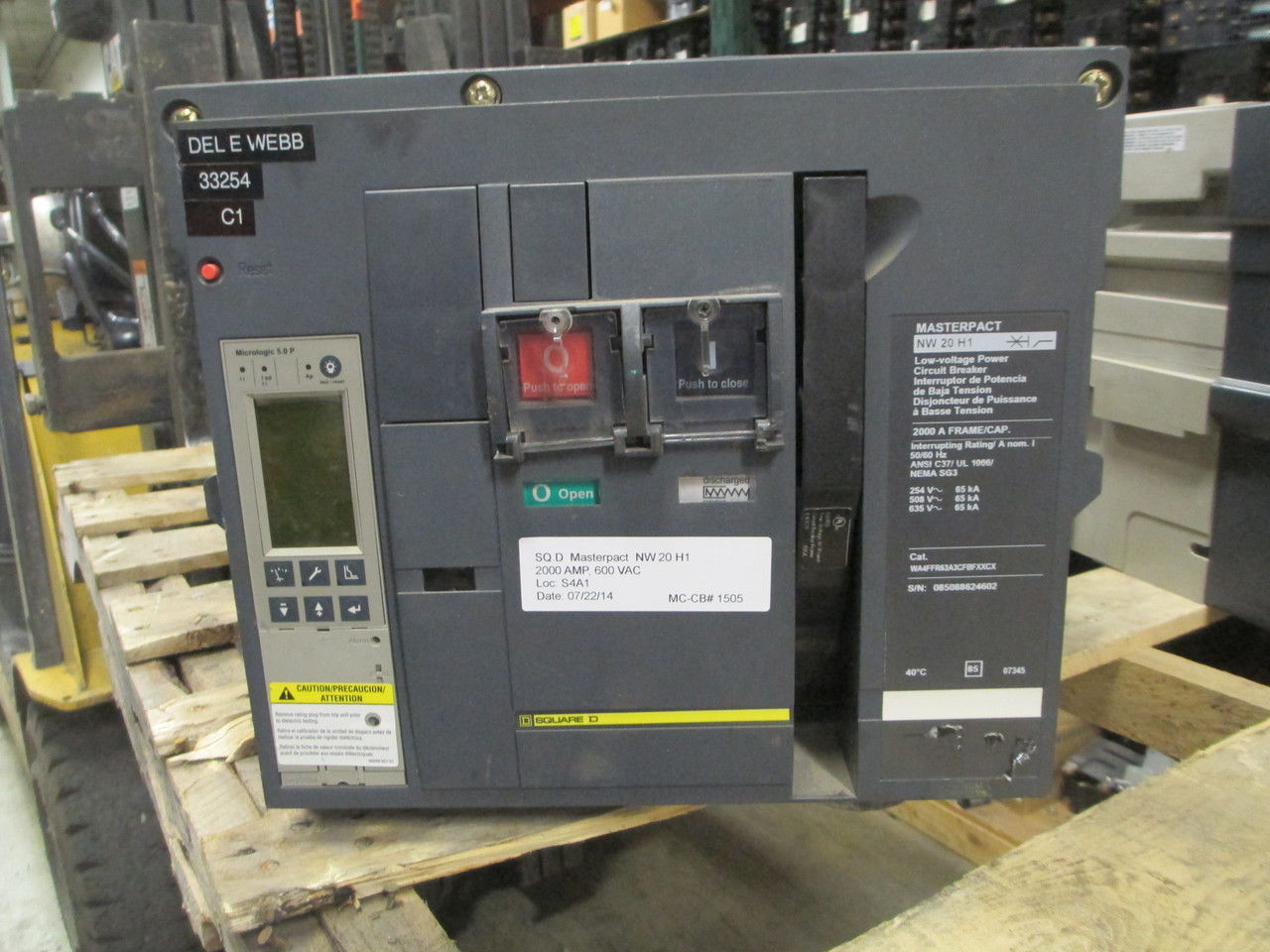

Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O
Picture of Square D Masterpact NW20H1 Circuit Breaker 2000 Amp 600 VAC E/O D/O

Product description:

Square D NW20H1 Masterpact circuit breaker: cat # WA4FFR63A3CFBFXXCX, 2000 amp, 600 volt AC, three pole, electrically operated (E/O), draw-out (D/O). Used tested with report.

  • 2000 Amp Rating Plug
  • Micro logic 5.0 P trip unit
    • LSI functions
  • Interrupting Rating
    • 65 kA @ 508 volt
  • Modbus
  • Spring charging motor
    • 100-130 VAC
  •  Shunt Trip
    • 24-30 VAC/DC
  •  Closing Coil
    • 100-130 VAC/DC

MC-CB# 1505          Loc: S4A1

Specs:

  • Manufacturer : Square D
  • Frame : NW
  • Family : Masterpact
  • Amperage : 2000
  • Voltage : 600V
  • Poles : 3
  • Ground Fault : No
  • Functions : LSI - Long-Time, Short-Time, Instantaneous
  • Operation : Electric
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brand: Square D
SKU: MCCB1505
$7,500.00
